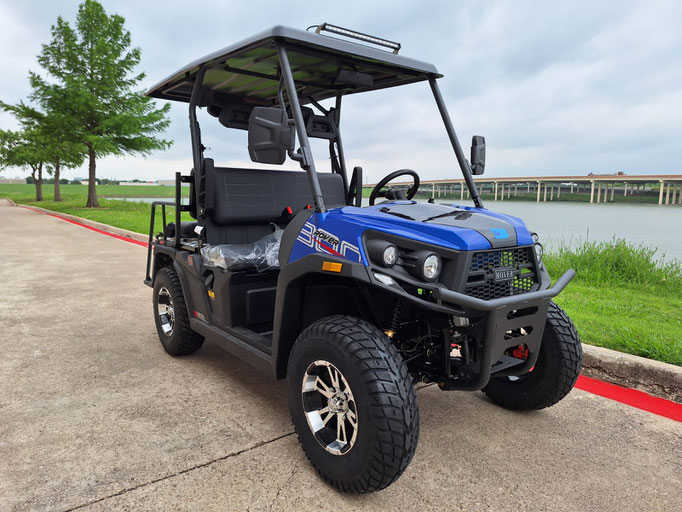

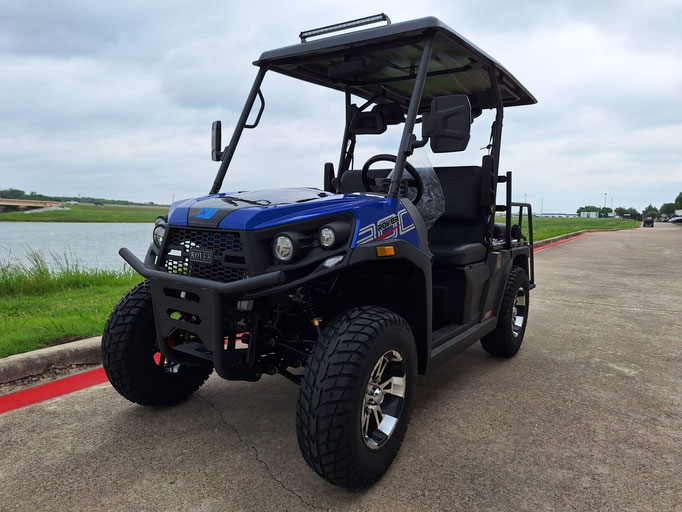

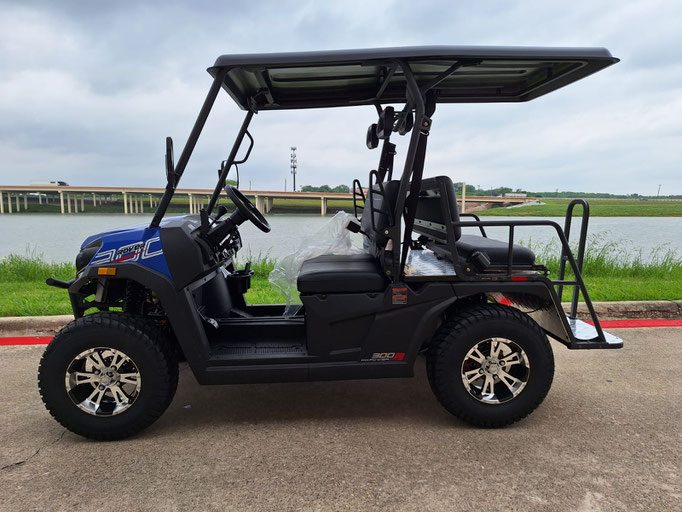

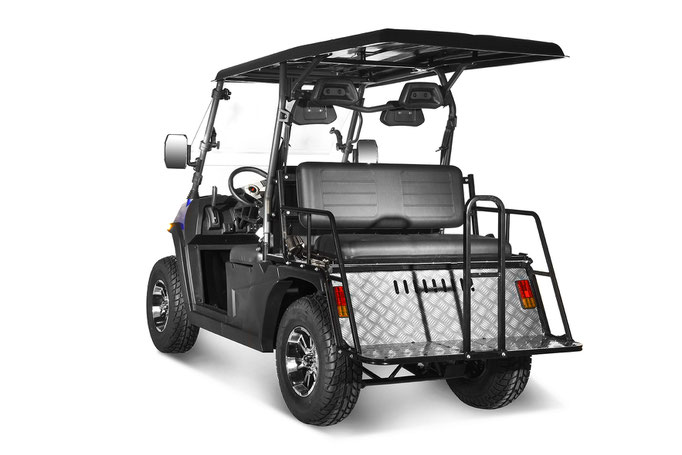

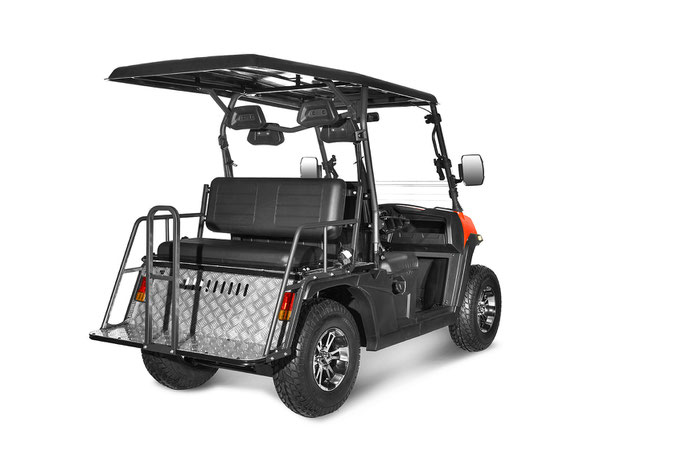

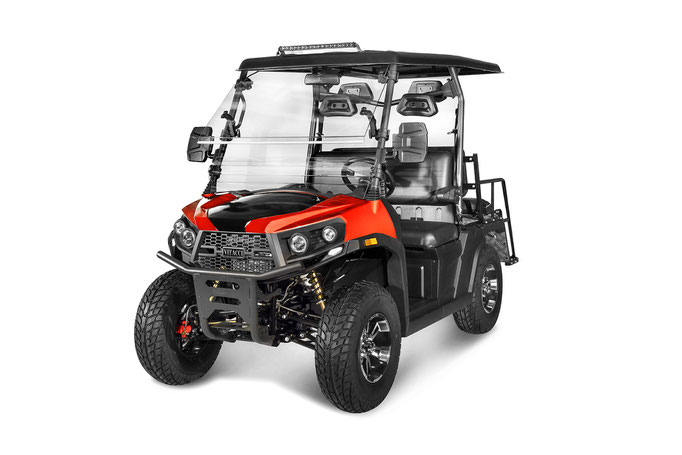

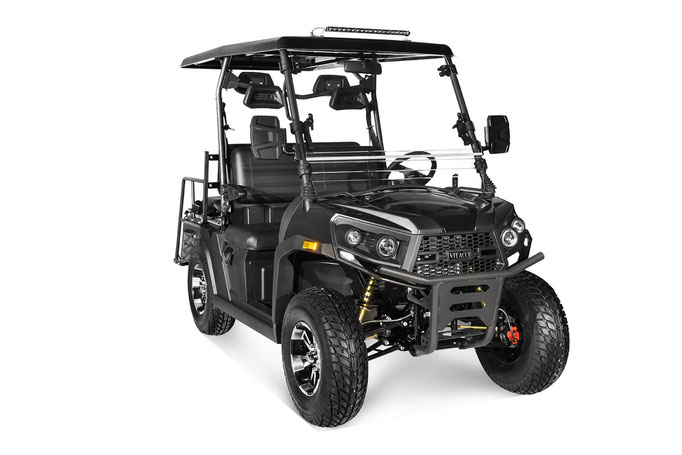

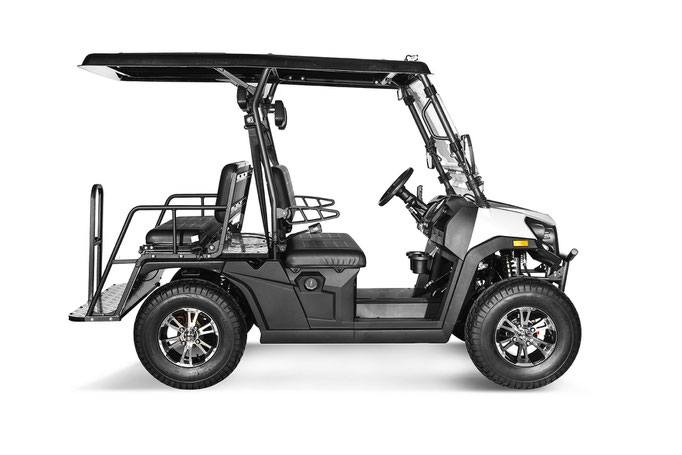

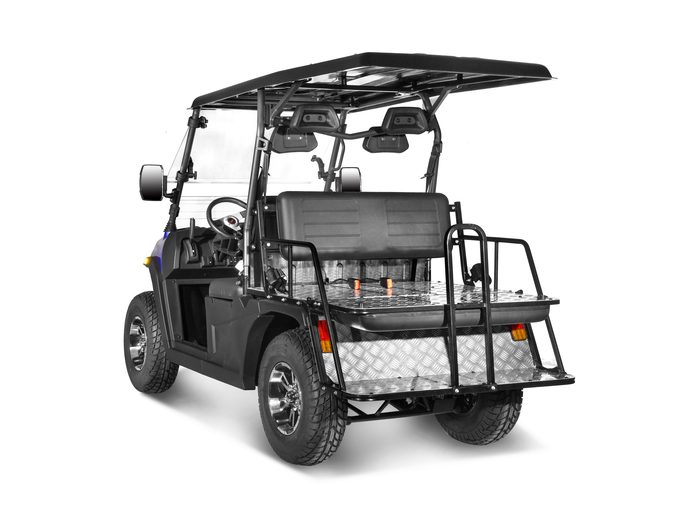

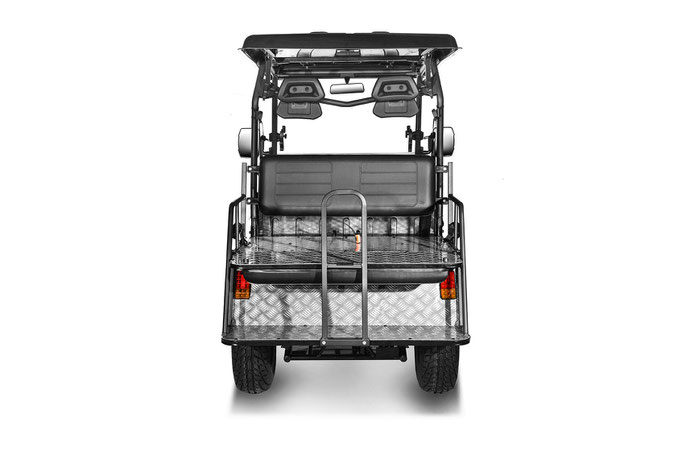

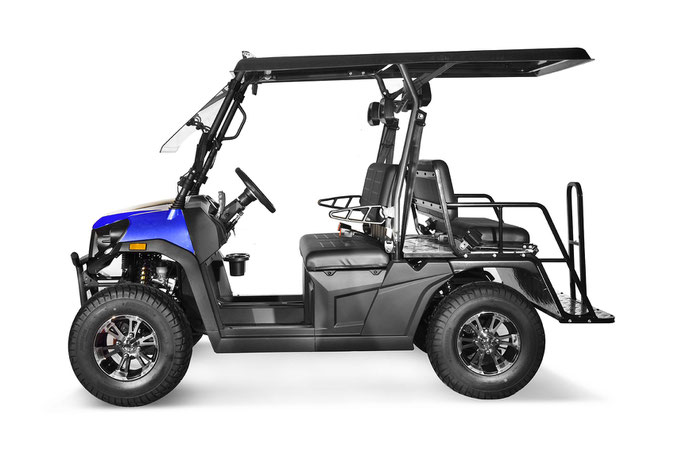

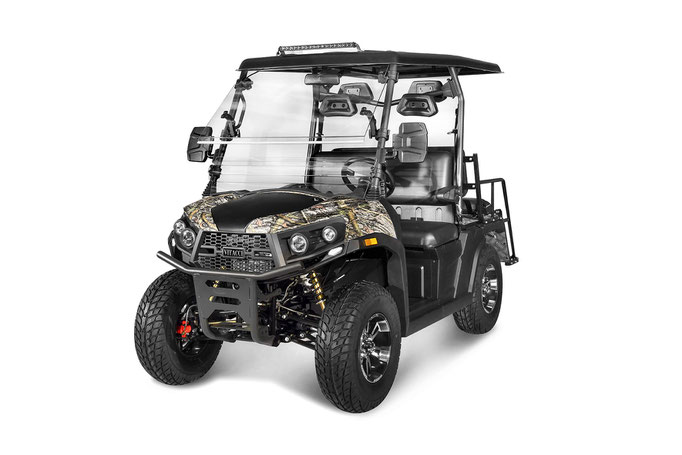

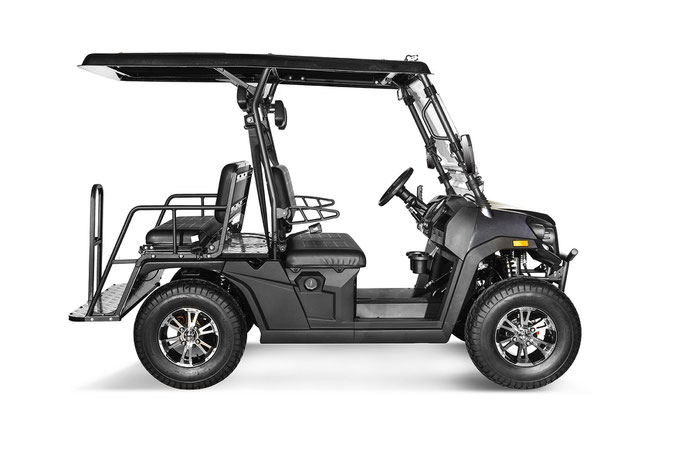

ROVER 300 EFI
| SPECIFICATIONS | ||
| Model | ROVER 300 EFI | |
| Dimensions | Overall length | 2888mm |
| Overall width | 1565mm | |
| Overall height | 1844mm | |

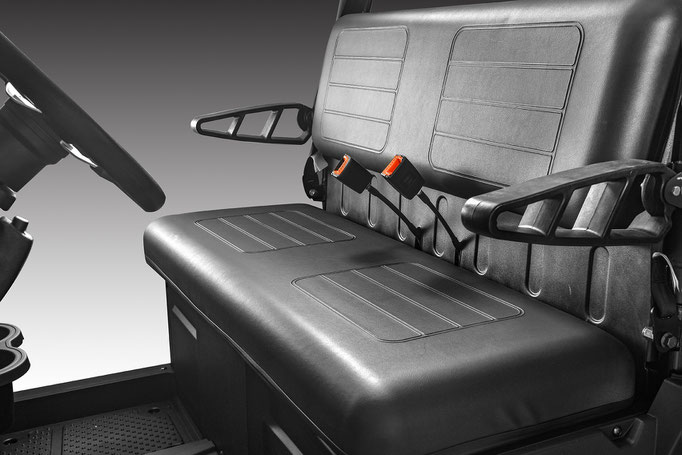

| Seat height | 784mm | |
| Wheelbase | 1839mm | |
| Ground clearance | 260mm | |
| Basic weight | With oil and full fuel tank | 425kg |
| Final gear case oil | Type | Wet tank lubrication |
| Quantity | 1.6 L | |
| Fuel | Type | Unleaded gasoline only 91# or higher |
| Fuel tank capacity | 24L | |
| Transmission | Transmission type | Two speed one down |
| Operation | Manual | |
| Chassis | Frame type | Steel tube frame |
| Caster angle | 5.0 ° | |

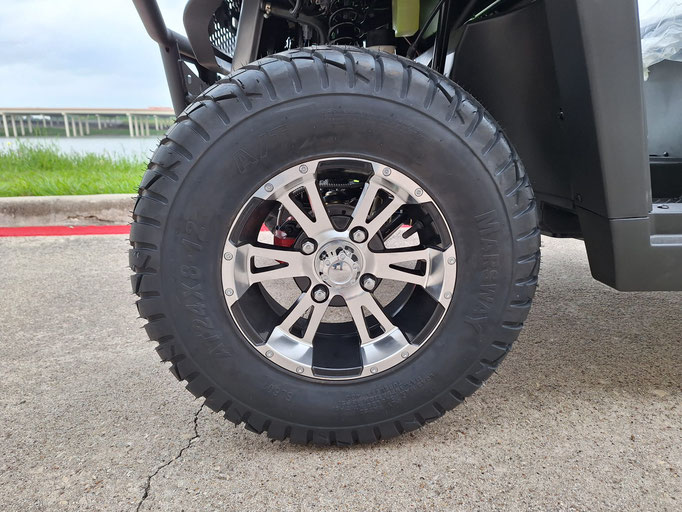

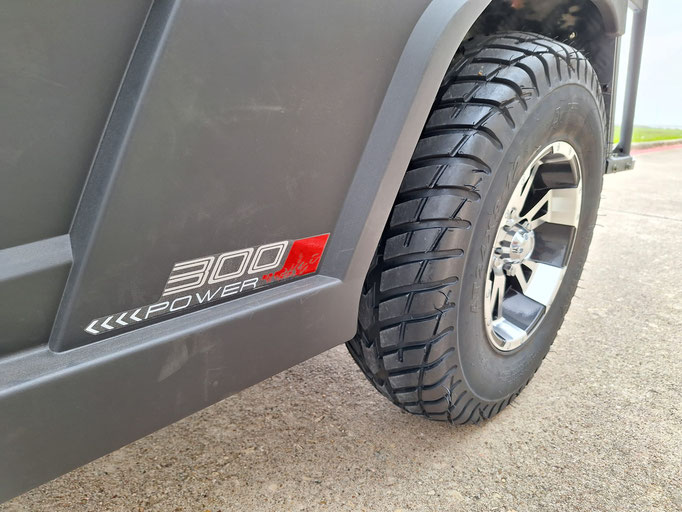

| Tire | Type | Tubeless |
| Size | Front 24×12–8 Rear 24×12–8 | |
| Brakes | System | Front and rear unified |
| Type Front | Dual disc brake | |
| Type Rear | Dual disc brake | |
| Operation | Foot operation | |

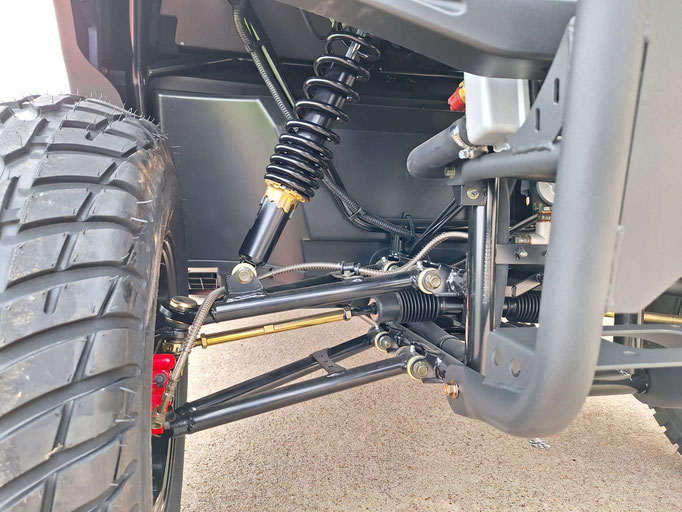

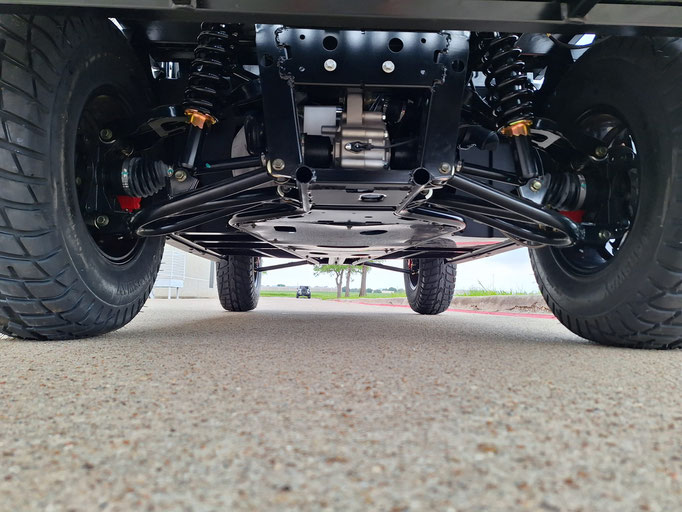

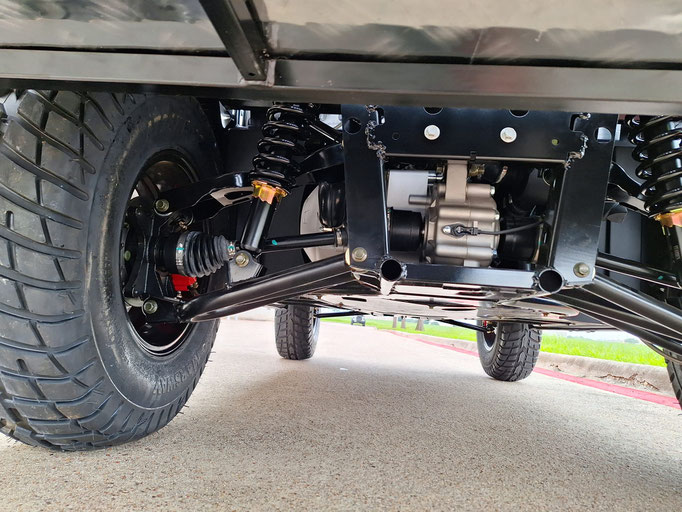

| Suspension | Front suspension | Double A-arm |
| Rear suspension | Double A-arm | |
| Shock absorber | Front shock absorber | Coil spring / oil damper |
| Rear shock absorber | Coil spring / oil damper | |
| Wheel travel | Front wheel travel | 80 mm |
| Rear wheel travel | 60 mm | |
| Engine model | 175MN | |
| Type | 4-stroke, Single-Cylinder, Water cooled | |
| Cylinder diameter | 75mm | |
| Piston stroke | 65mm | |
| Compression ratio | 10.8 :1 | |
| Displacement | 287.2mL | |
| Spark plug | CR8EA | |
| Maximum power | 21Kw/8500r/min | |
| Maximum torque | 26.5N.m/5500r/min | |
| Idle speed | 1600± 100rpm | |
| Limited speed | 40km/h | |
| Engine oil capacity | 1600ml（ SAE15W-40） | |
| Gearbox oil capacity | 1300ml(SAE 85W/140) | |
| Gear ratio | F:4.93,R:9.74 | |
| Magneto power | 400W@4000rpm |
