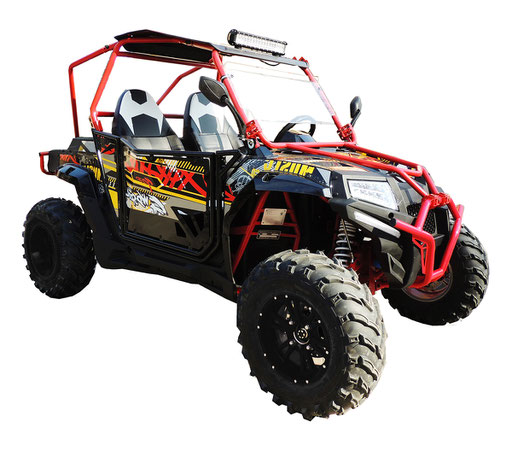

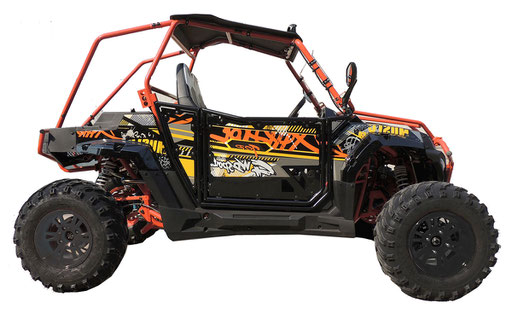

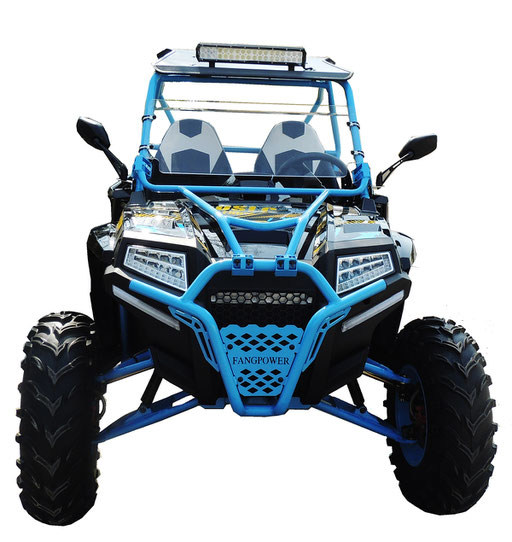

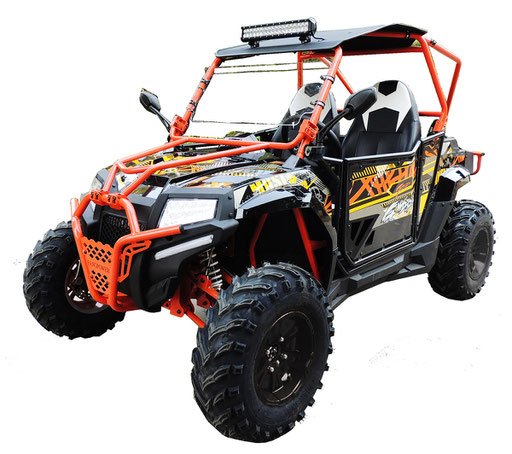

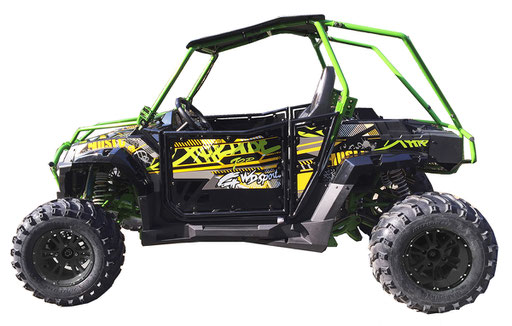

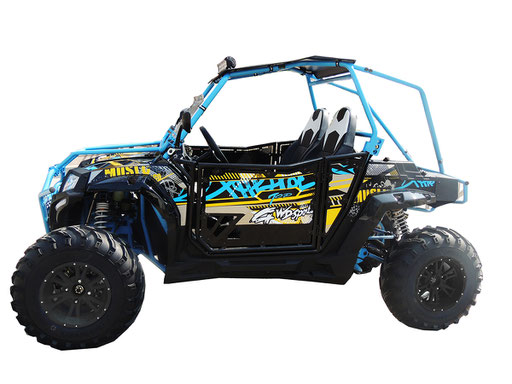

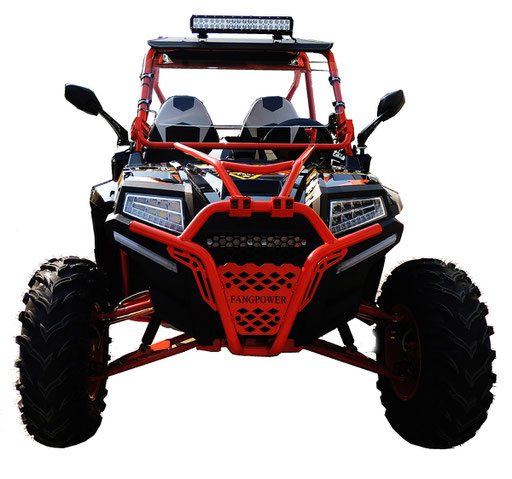

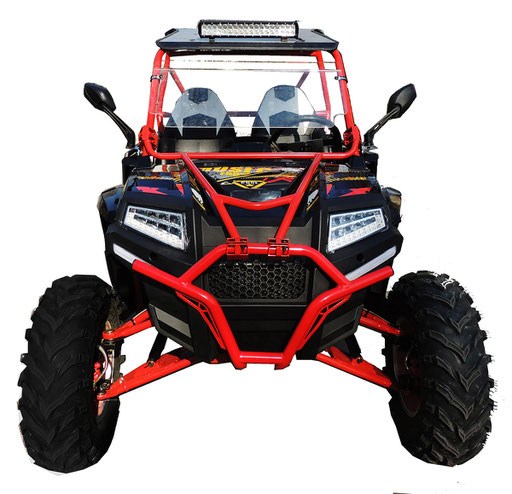

PREDATOR FX400

MODEL                "PREDATOR FX400 UTV"

ENGINE
Engine style           4-stroke,Single-Cylinder, Water-cooled
Displacement           311.4
Horse Power            15.2KW ( 7000rpm)20.4HP
Valve Configuration          OHV
Compression ratio          10.5:1
Fuel Delivery System          Fuel Pump+Vacuum Diaphragm Carburetor
Choke System            Two Chokes System /Automatic
CHASSIS
Fuel capacity        11L (2.5 Gallon)
Top speed        75km/h
Dry weight        365kg
Gross weight        385kg
Drive Type          4X2
Drive System        Shaft-Drive
Transmission         Constantly Variable Transmission
Gear Selection         F-N-R

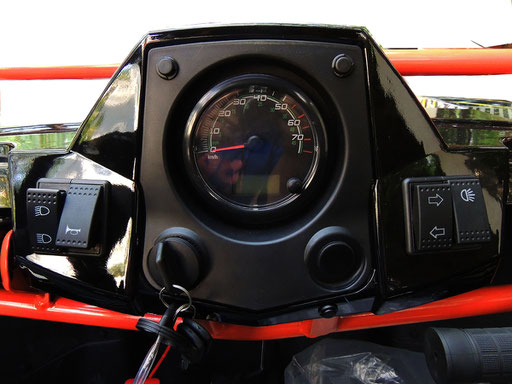

Speed/Fuel  meter       LED Meter
Battery         12AH 12V
Rear Lights        Brake Lights & Left/Right Signal lights
Ignition system        D.C.D.I
Suspension Front         Double A-arm Suspension
Suspension Rear          Fang power 4-Link® bar Rear Suspension
Brakes F/R        "220MM F/R Dual Hydraulic Disk"
Front/Rear Tread        1250mm ( 49.2 in) / 1150mm ( 45.2in)
Front & Rear tire size         25x8-12 / 25x10-12
Front & Rear rim size        12x6 / 12x8
Wheelbase        1980mm (78in)
Packing size         2290*1300*815
Ground clearance         300mm(11.8in)
Vehicle dimension (L×W×H)        2700x1450x1660mm(106x57x65)
Optional : Windshield/LED roof light
