ENGINE
|

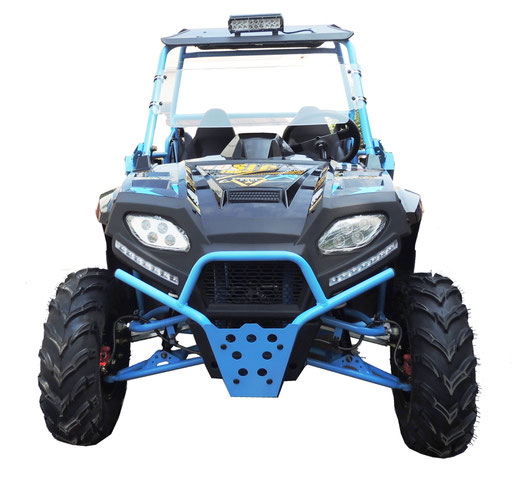

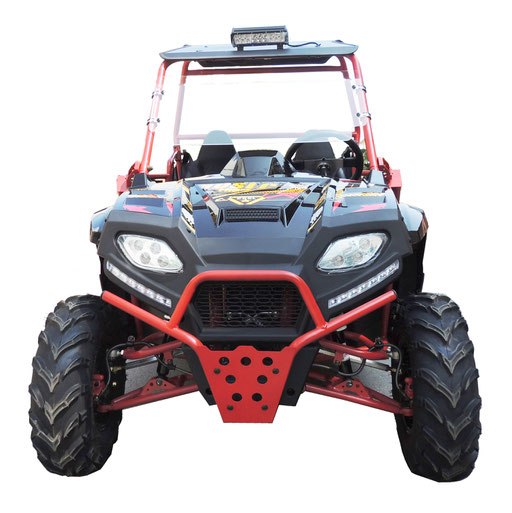

FX250
|
|
Certification
|
|
|
Engine type
|
4-stroke,Single-Cylinder, Air/Oil-cooled
|
|
Displacement
|
232cc
|
|
Horse Power
|
10.5kw(7500r/min) 14.5HP
|
|
Valve Configuration
|
OHV
|
|
Compression ratio
|
10.3:1
|
|
FUEL SYSTEM
|
|
Fuel Delivery System
|
Fuel Pump Carburetor
|
|
Choke System
|
Automatic
|
|
Fuel capacity
|
9.5L (2.1 Gallon)
|
|
DRIVETRAIN
|
|
Driveline Type
|
2X4
|
|
Final Drive
|
Chain-drive
|
|
Transmission
|
Constantly Variable Transmission
|
|
Gear Selection
|
Forward & Reverse Single Speed
|
|
ELECTRICAL SYSTEM
|
|
Forward Lights
|
Headlights-High & Low Beam LED LIGHT
|
|
Rear Lights
|
Brake Lights & Left/Right Signal lights
|
|
Starting system
|
Electric start
|
|
Ignition system
|
C.D.I
|
|
SUSPENSION / BRAKES
|
|
Suspension Front
|
Adjustable Double A-arm optional
|
|
Suspension Rear
|
Dual Shock Swing arm
|
|
Brakes Front
|
Front Dual Hydraulic Disk
|
|
Brakes Rear
|
Rear Single Axle Hydraulic Disk
|
|
Steering
|
Rock and pinion steering
|
|
TIRES
|
|
Front Tread
|
1020mm ( 40.2 in)
|
|
Rear Tread
|
1040mm ( 38.0in)
|
|
Front & Rear tire size
|
22x8-10 / 22x10-10
|
|
MISC
|
|
|
|
|
Top speed
|
55km/h
|
|
Dry weight
|
245kg ( 540 lbs.)
|
|
Gross weight
|
280kgs(617lbs)
|
|
Wheelbase
|
1860mm (71.0in)
|
|
Vehicle dimension (L×W×H)
|
2450x1220x1760mm (96.4x48x69.2in)
|
|
Packing size
|
2290x1300x815mm (90.1x51.1x32in)
|
|
Ground clearance
|
152mm (6in)
|
|
Safety
|
Driver & Passenger Seat belts/ Driver and Passenger safety net restraints.
|
