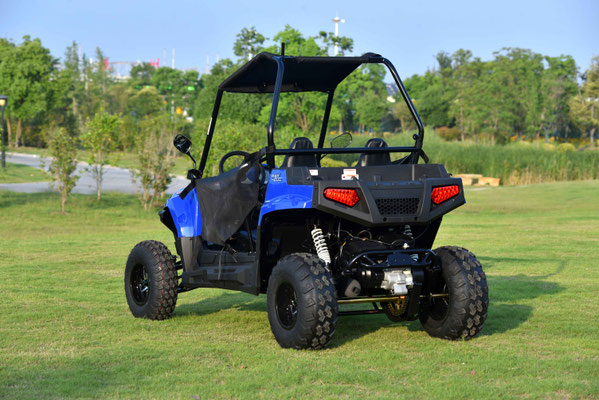

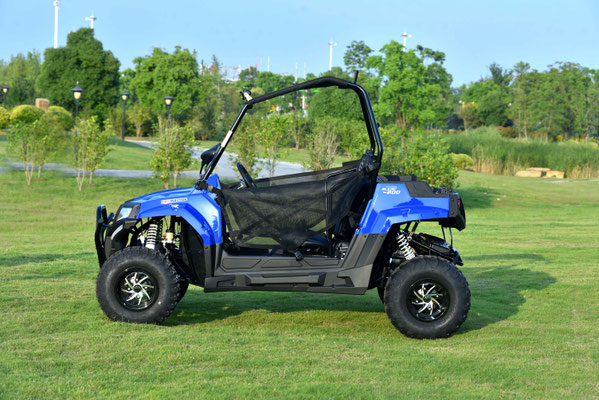

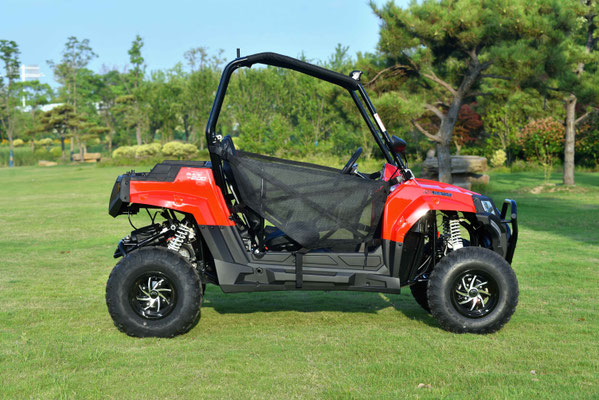

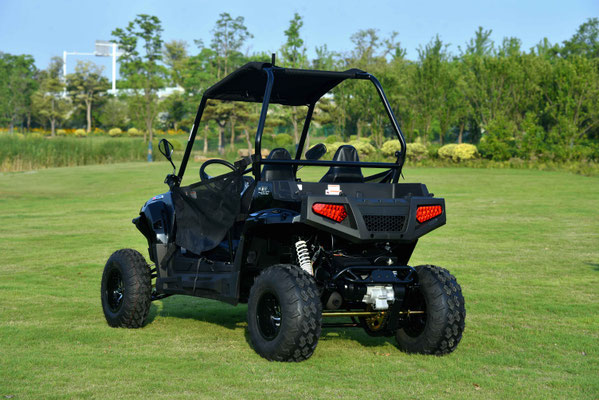

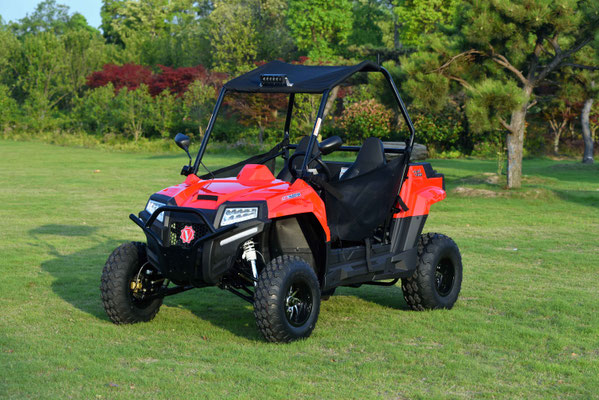

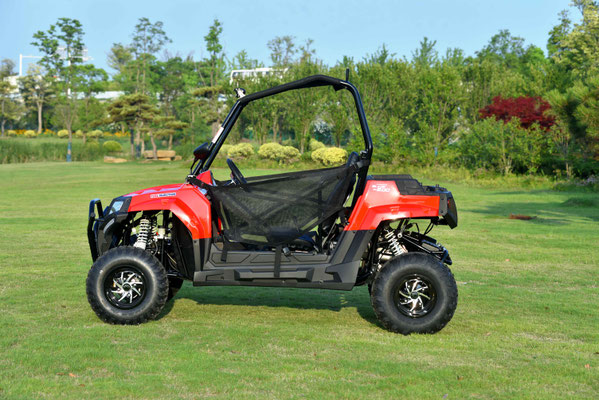

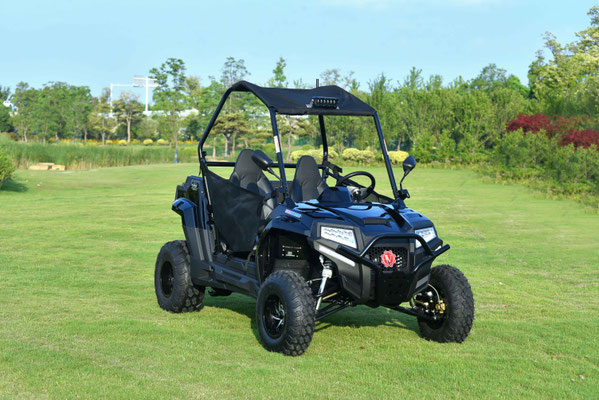

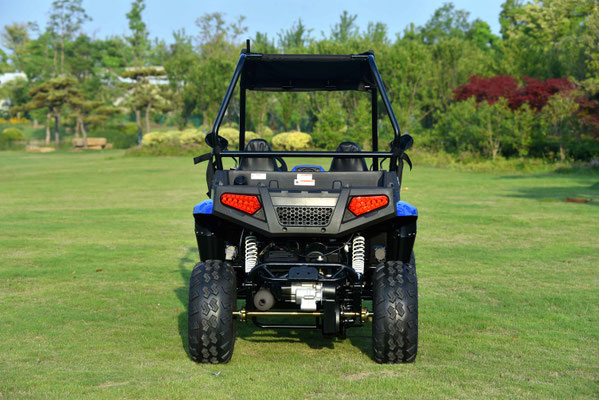

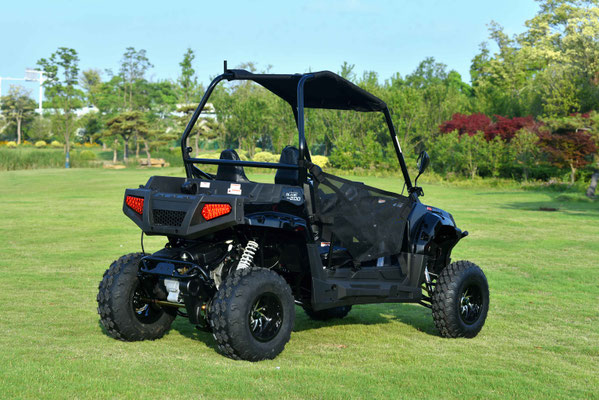

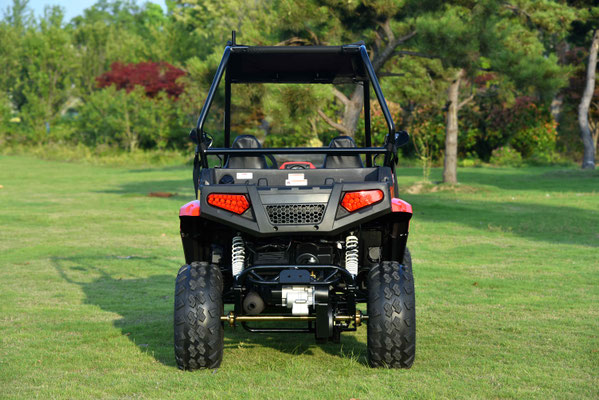

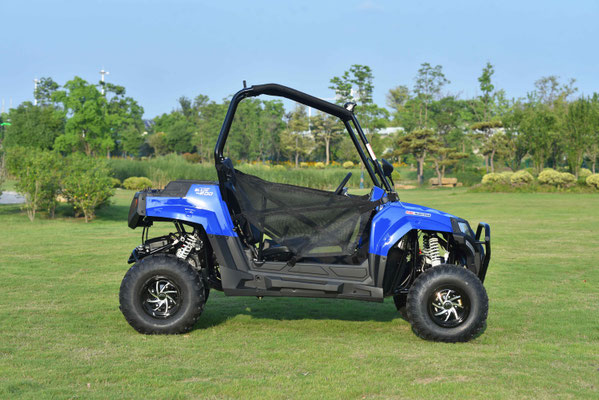

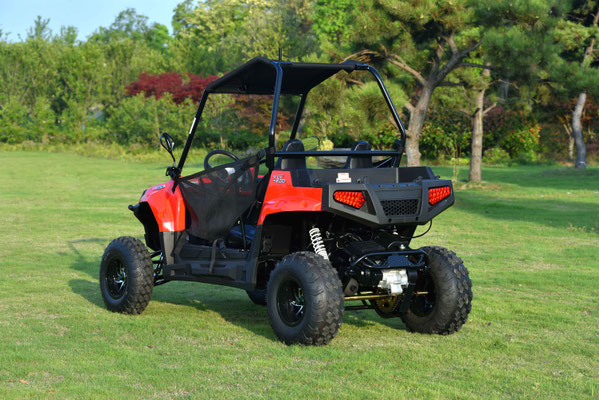

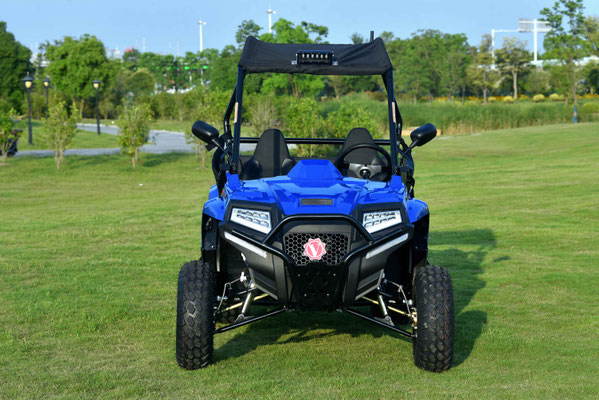

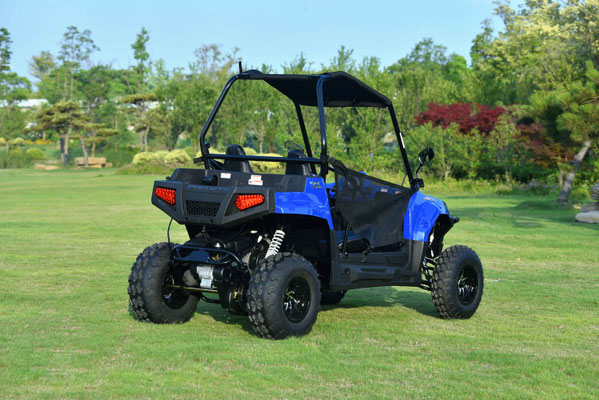

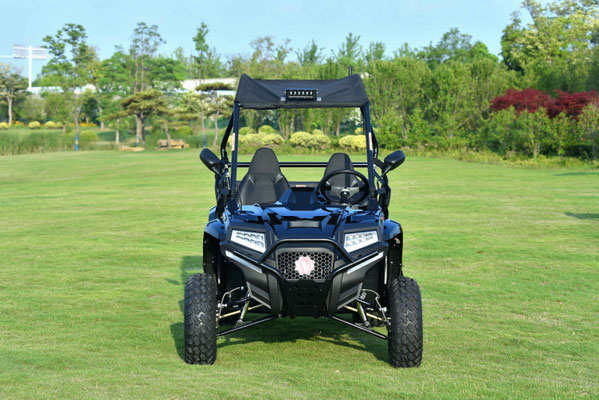

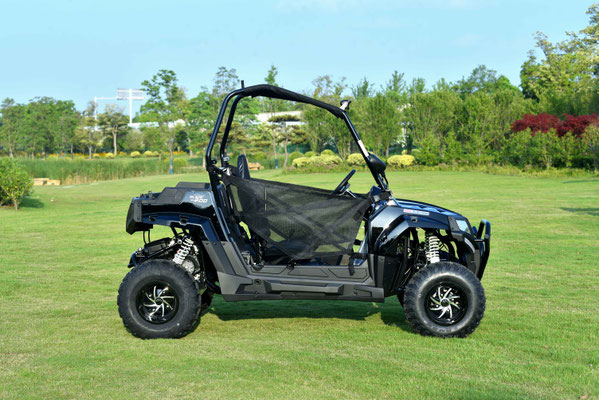

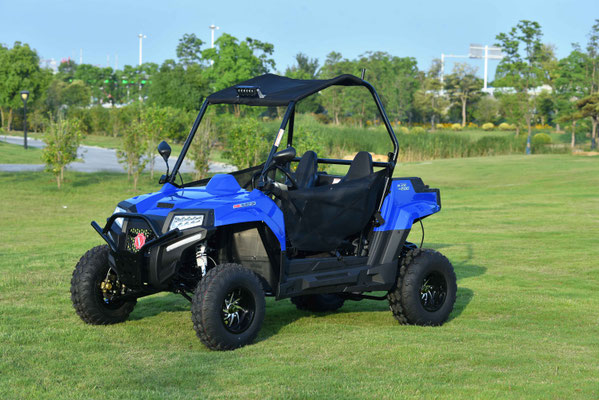

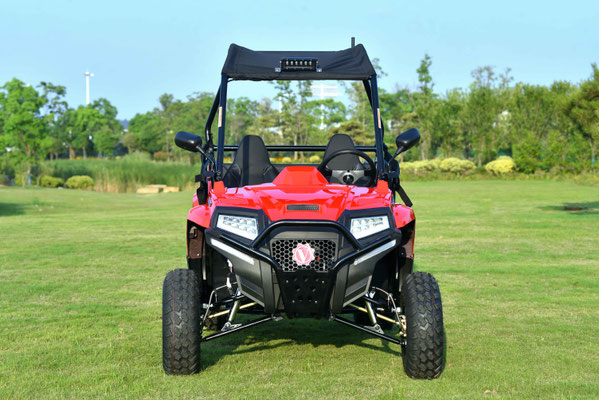

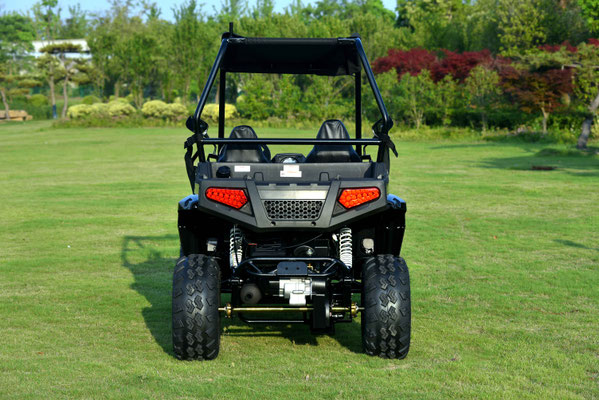

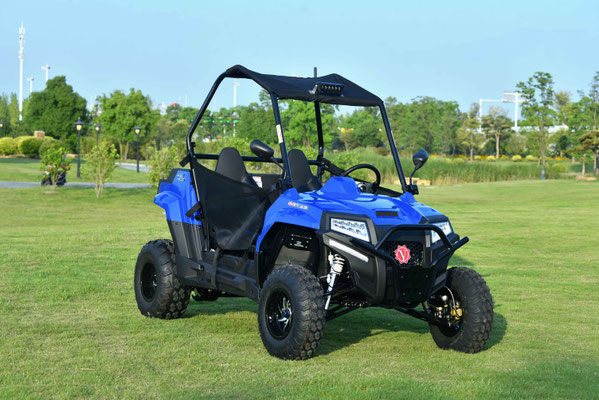

BLADE 200 EFI
| Vehicle Specification | ||
| Overall Vehicle Size (L x W x H) | 2450x1220x1530mm (96.5x48x60.2 inch) | |
| Ground Clearance (mm) | 152mm (5.9inch) | |
| Wheelbase (mm) | 1860mm (73.2inch) | |
| Weight with full equipment’s | 283kg (623.9lbs) | |
| Front/Rear Brakes |
Front Dual Hydraulic Disk Rear Single Axle Hydraulic Disk |
|
| Parking Brake | Hand-Actuated | |
| Front Tires | AT21x7-10 | |
| Rear Tires | AT22x10-10 | |
| Front Suspension | Dual A-Arm | |
| Rear Suspension | Dual Shock Swing arm | |
| Cargo Box Dimensions (L x W x H) | 554×1220×165mm (21.8×48×6.5inch) | |
| Box Capacity (kg) | 30kg (66.1lbs) | |
| Fuel Capacity (L) | 9.5L (2.5gal) | |
| Engine specification | ||
| Cooling | Air cooled | |
| Engine Capacity (cc) | 168.9cc | |
| Volumetric Compression Ratio | 9.2:1 | |
| Drive System Type | 2WD | |
| Engine Type | Single Cylinder 4-Stroke | |
| Fuel System | Electronic Fuel Injection | |
| Ignition type | E.C.U | |
| Start type | Electric | |
| Horsepower | 11HP | |
| Transmission/Final Drive | CVT F/N/R; Chain Drive | |
| Maximum power (Kw /r/min) | 8.3KW/8000RPM | |
| Maximum Torque (Nm /r/min) | 11N·m/6000RPM | |
| Top Speed (km/h) | 51km/h (32mile) | |
