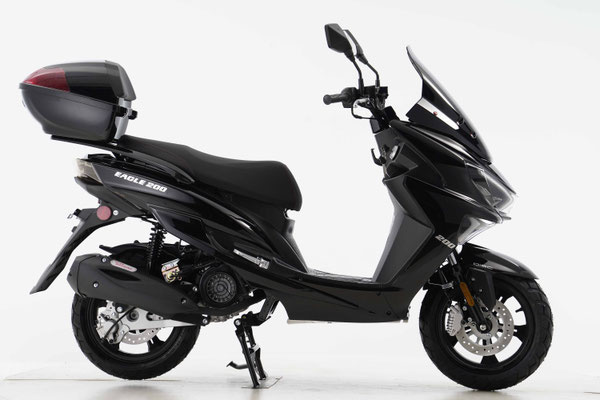

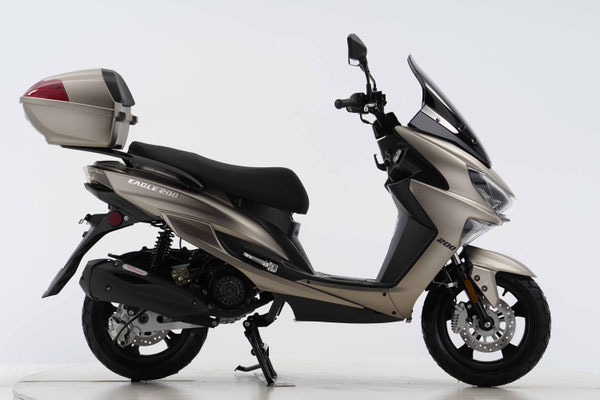

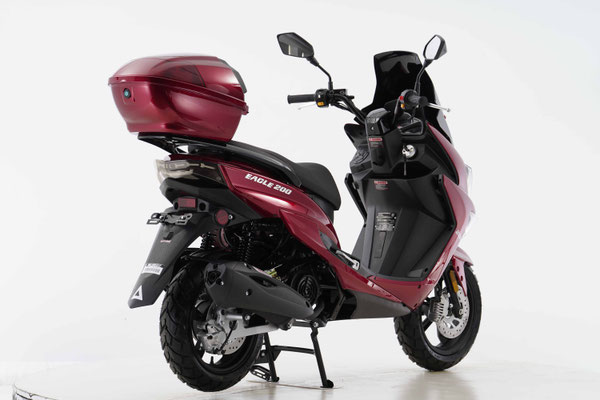

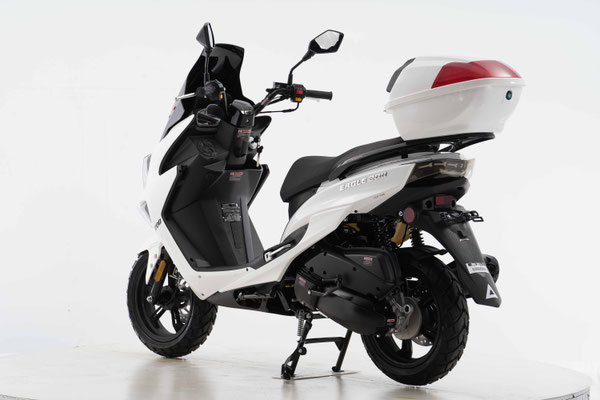

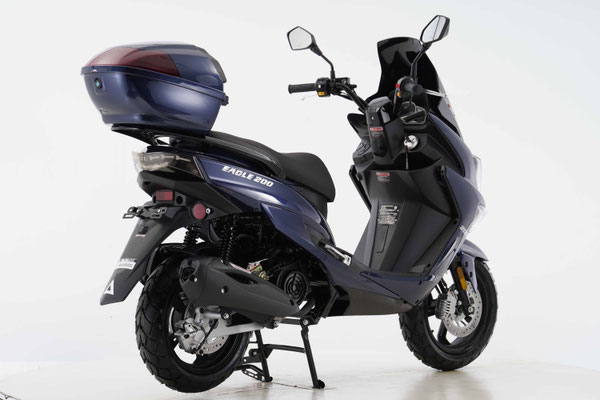

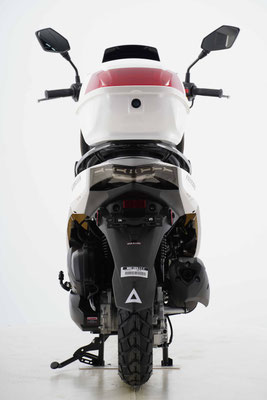

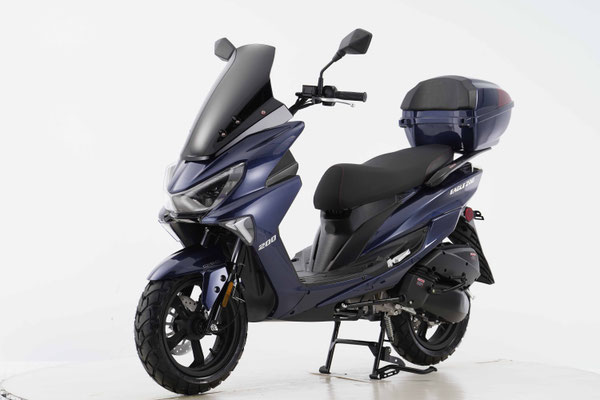

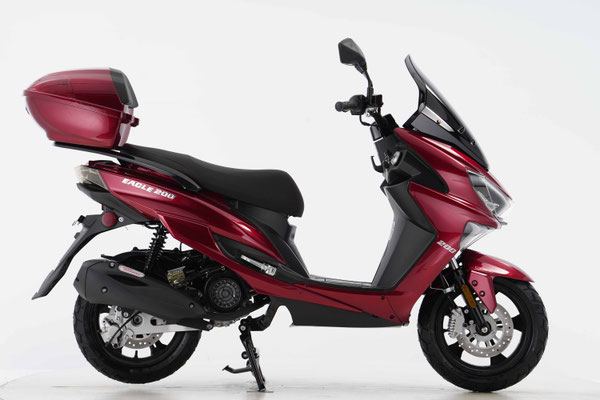

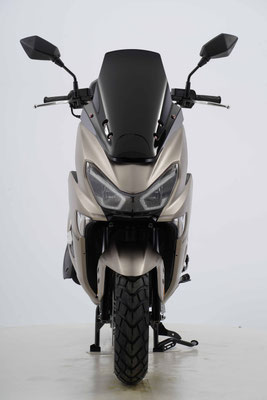

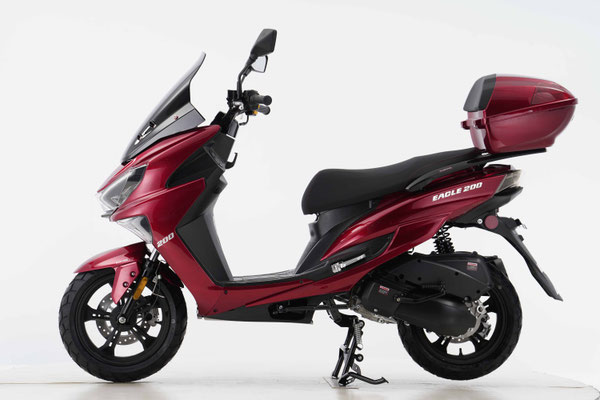

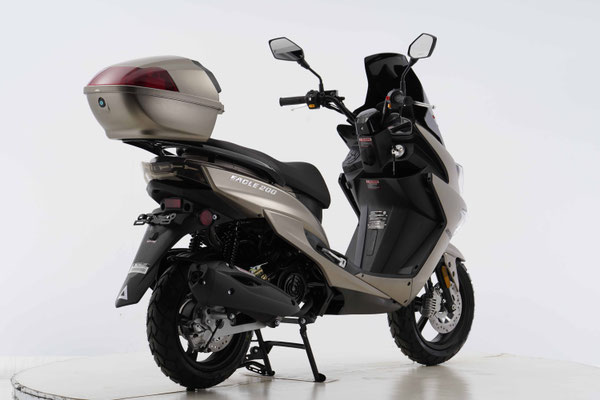

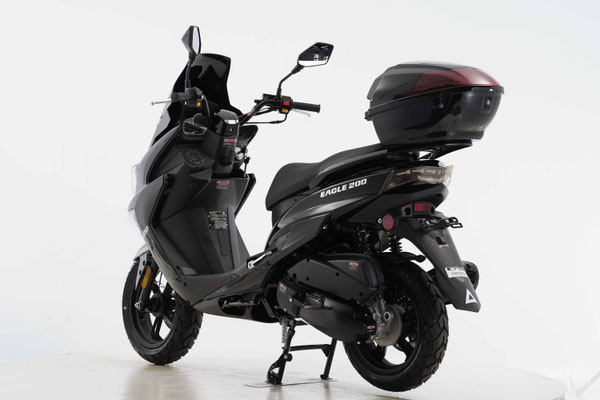

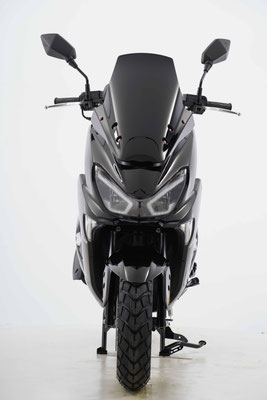

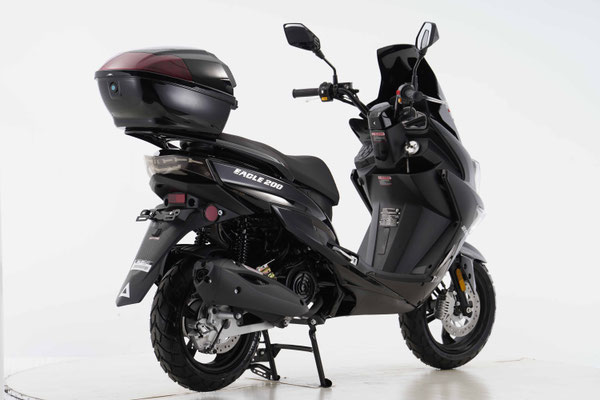

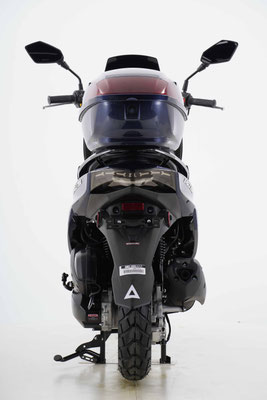

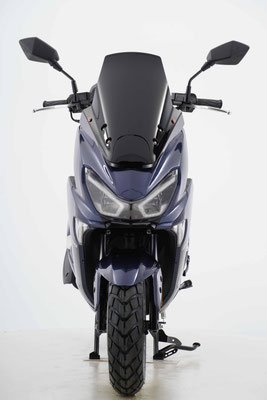

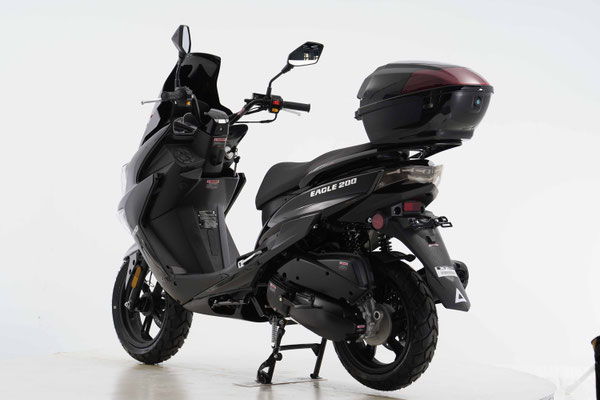

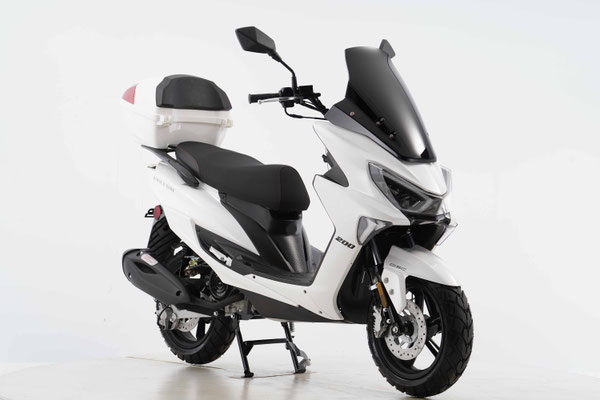

EAGLE 200
SPECIFICATIONS
:
Engine and transmission
Displacement(cc)
168.9

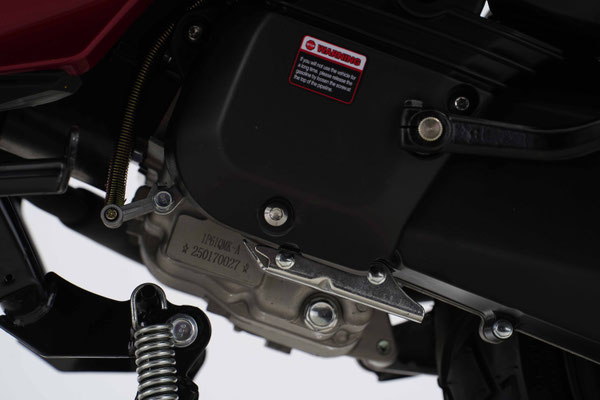

Engine type
1P61QMK-A
Engine mode
1-cylinder/4-stroke/2-valve
Bore x stroke(mm)
ø61*57.8
Max.power
7.4kW/7000 r/min
Max.torque
11N·m/6000 r/min
Compression ratio
9.5:1
Fuel system
Carburetor
Valve train
SOHC

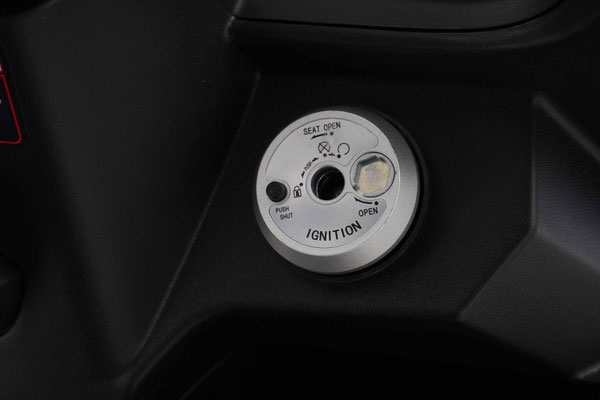

Ignition
C.D.I.
Starter
Electric & Kick
Lubrication system
Pressure splash lubrication
Cooling system
Forced-air-cooled
Gear shifting type
Automatic CVT
Transmission type
final drive
V-Belt
Clutch type
Automatic
Physical measures
Dry weight(kg)
105
Seat height(mm)
760
Overall length (mm)
1980
Overall width (mm)
730
Overall height (mm)
1140
Ground clearance (mm)
110
Wheelbase (mm)
1375
Chassis and dimensions
Frame type
Flat scooter
Front suspension
Telescopic forks
Front suspension travel (mm)
90
Rear suspension
Mono-shock-absorber
Rear suspension travel (mm)
95

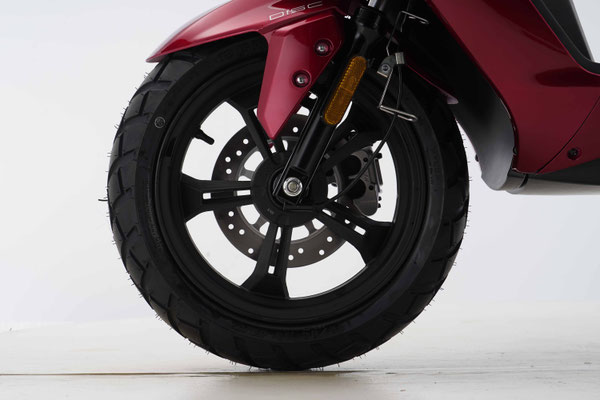

Fr. tyre
130/60-13
Rr. tyre
130/60-13
Fr. Brakes
Disc
Fr. brakes diameter (mm)
230
Rr. brakes
Disc
Rear brakes diameter (mm)
220
Other specifications
Top speed(km/h)
95
Max.loadage (kg)
150
Fuel capacity(L)
7.5
Battery
12V6Ah(YTX7A-BS)
EAGLE 200 PARTS CATALOG.xls
Microsoft Excel Table
20.4 MB
