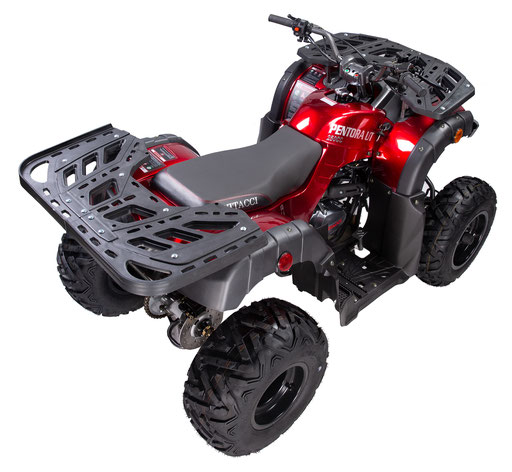

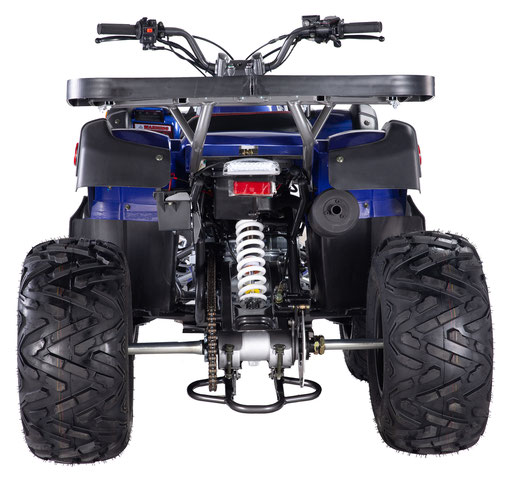

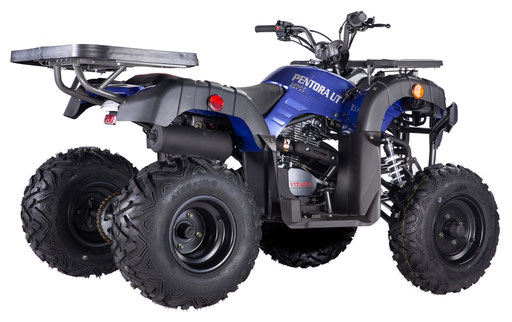

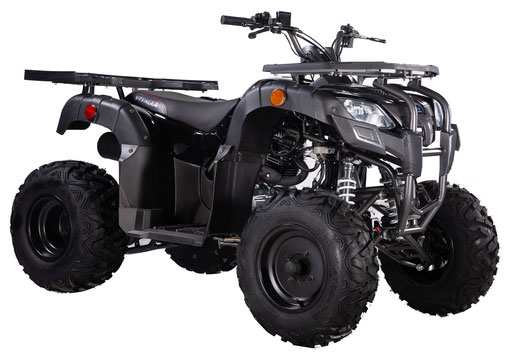

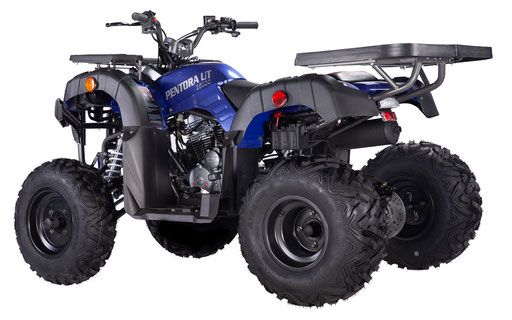

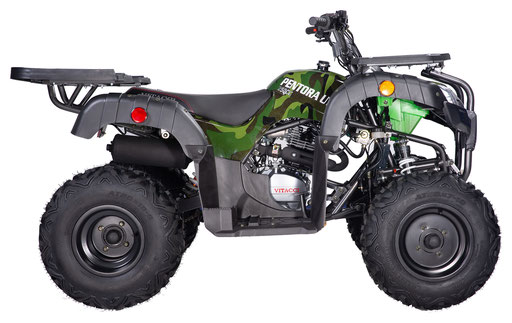

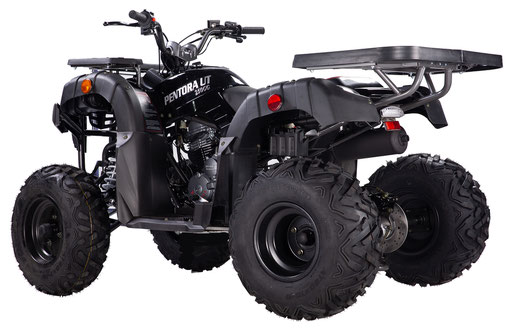

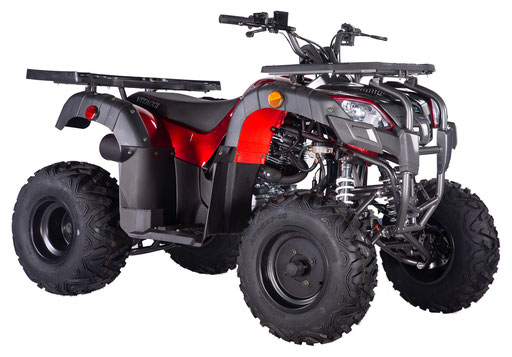

PENTORA UT 250CC-MANUAL CLUTCH
|
NO. |
Sort |
specification |
unit |
||
|
1. |
Vehicle parameter |
Length×width×Height |
1660*1030*1080 |
||
|
2. |
|
1150±20mm |
|||
|
3. |
Front wheel track |
850 mm |
|||
|
4. |
Rear wheel track |
820 mm |
|||
|
5. |
Maximum ground clearance |
140±15mm mm |
|||
|
6. |
Seat height |
780 ±15mm mm |
|||
|
7. |
Chassis height |
260 mm |
|||
|
8. |
Handle height |
1080 mm |
|||
|
9. |
Packing size |
1620*1020*860mm 42/40H |
|||
|
10. |
Front mechanical suspension stroke |
60 mm |
|||
|
11. |
Rear mechanical suspension stroke |
80 mm |
|||
|
12. |
Minimum turning diameter |
3400±500mm |
|||
|
13. |
Steering angle |
<45° （in fact: 39°） |
|||
|
14. |
Side slip |
<5m/km |
|||
|
15. |
Load capacity |
100kg |
|||
|
16. |
Net weight |
159kg |
|||
|
17. |
Packing GW |
187kg |
|||
|
18. |
Brake type (front/rear) |
F/R disco brake |
|||
|
19. |
Brake operation mode (front/rear) |
F/ handbrake R/footbrake |
|||
|
20. |
Rim type (front/rear) |
10寸/9寸 |
|||
|
21. |
Tire size (front/rear) |
F/AT20*7-10 R/AT20*10-9/off-road tire |
|||
|
22. |
Tire pressure (front/rear) |
9P.S. I |
|||
|
23. |
Transmission mode |
Chain drive |
|||
|
24. |
Engine parameters
|
model |
LC166FMM |
||
|
25. |
Type |
Single cylinder、4 strokes、air cooling |
|||
|
26. |
Factory |
Loncin |
|||
|
27. |
Bore diameter × stroke |
65.5×66.2mm |
|||
|
28. |
Cylinder working volume |
223mL |
|||
|
29. |
Compression ratio |
9.0:1 |
|||
|
30. |
Rated power and corresponding speed |
/ |
|||
|
31. |
Maximum power and corresponding speed |
12（1±5%）kW /7500（1±5%）rpm |
|||
|
32. |
Maximum torque and corresponding speed |
17（1±5%）N · m /6000（1±5%）rpm |
|||
|
33. |
Minimum idling speed |
1500±150 r /min |
|||
|
34. |
≤354 g / kw.h |
||||
|
35. |
Fuel brand |
≥RQ90 |
|||
|
36. |
Lubrication mode |
Pressure and splash hybrid lubrication |
|||
|
37. |
Lubrication mode |
15W/40-SE(Summer)10W/30-SF(Winter) |
|||
|
38. |
Clutch mode |
Wet multi-piece |
|||
|
39. |
Starting mode |
electric |
|||
|
40. |
Ignition mode |
CDI |
|||
|
41. |
Components |
Carburetor mode |
Plunge PZ30 |
||
|
42. |
Spark plug type |
D8RTC |
|||
|
43. |
Battery |
12V/7HA |
|||
|
44. |
Front light type |
12V18-18W |
|||
|
45. |
Technical parameters |
Max speed |
大于80km/h |
||
|
46. |
15S |
||||
|
47. |
≤5.9m/30m/km/h |
||||
|
Front wheel ratio |
≥60% |
||||
|
Rear wheel ratio |
≤20% |
||||
|
Front wheel (force difference) |
≥55% |
||||
|
Rear wheel (force difference) |
≤24% |
||||
|
48. |
climbing ability |
21°° |
|||
|
49. |
parking performance |
≥18% |
|||
|
50. |
emission index
|
CO(%) |
≤2 |
||
|
HC(PPm) |
≤250 |
||||
|
51. |
Max noise db(A) |
≤82 dB(A) |
|||
|
52. |
starting acceleration capability（S） |
≤15 |
|||
|
53. |
passing acceleration capability（S） |
≤10 |
|||
|
54. |
Component parameter |
Oil tank capacity |
9L |
||
|
55. |
F/R suspension type |
Hydraulic damping shock absorber |
|||
|
56. |
Exhaust muffler type |
Barrel impedance composite muffler |
|||
|
57. |
F/R suspension length |
L= 340 m m / L=390 m m |
|||
