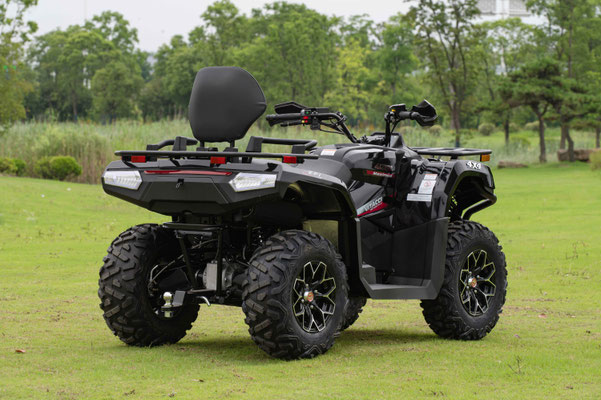

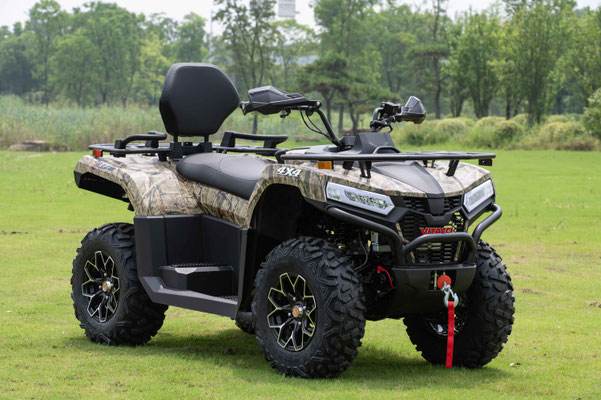

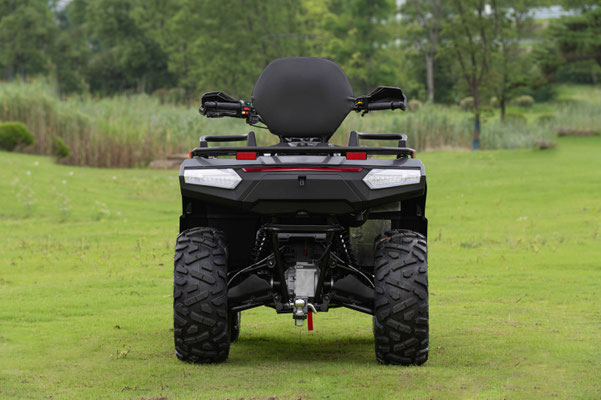

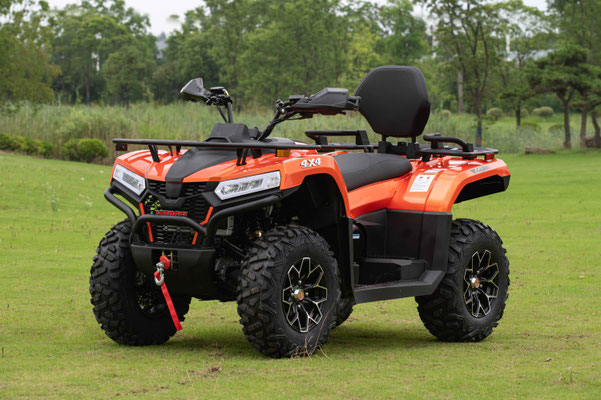

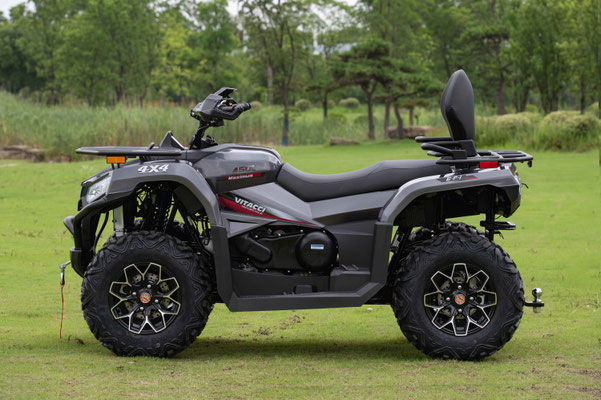

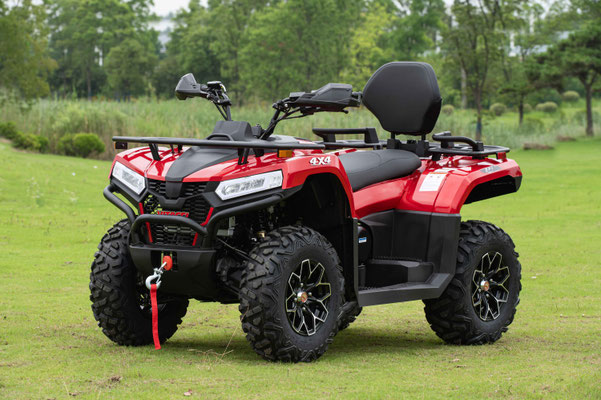

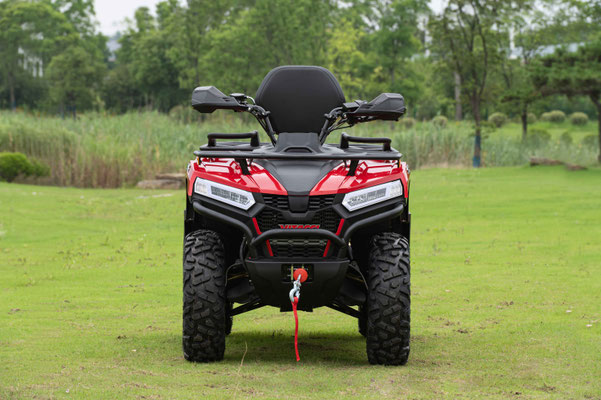

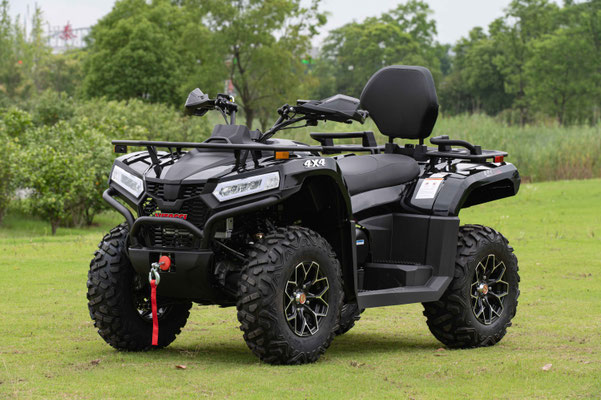

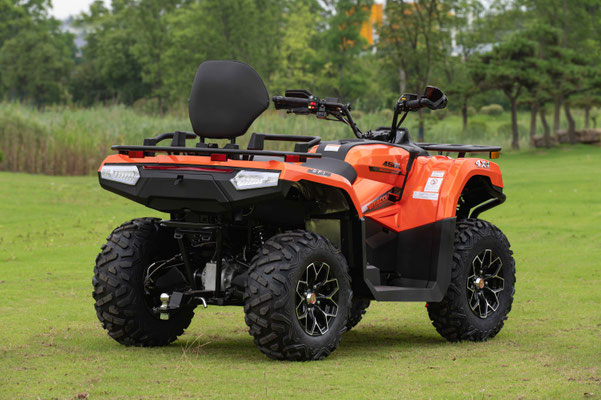

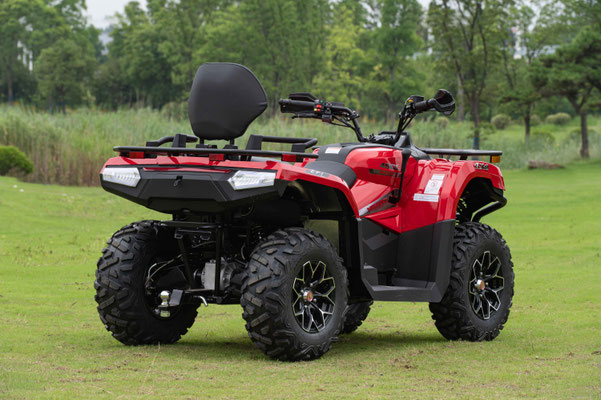

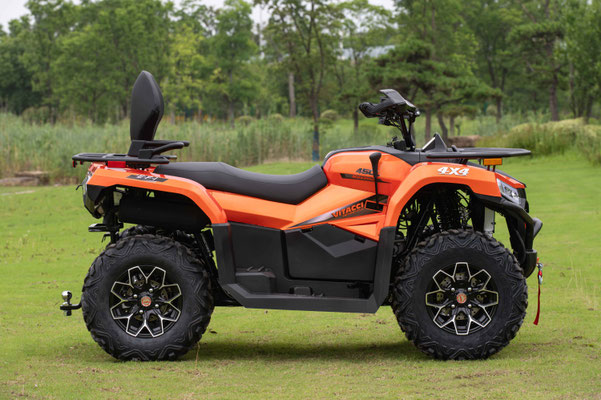

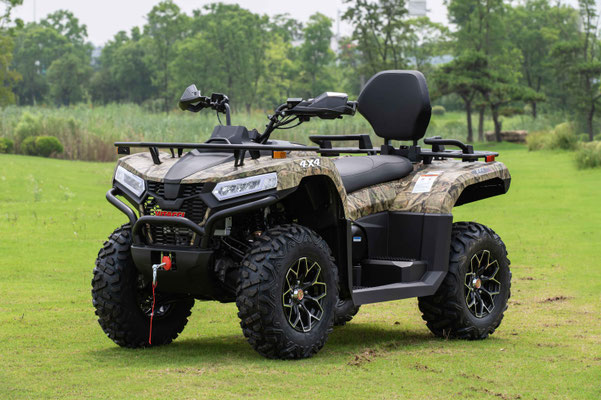

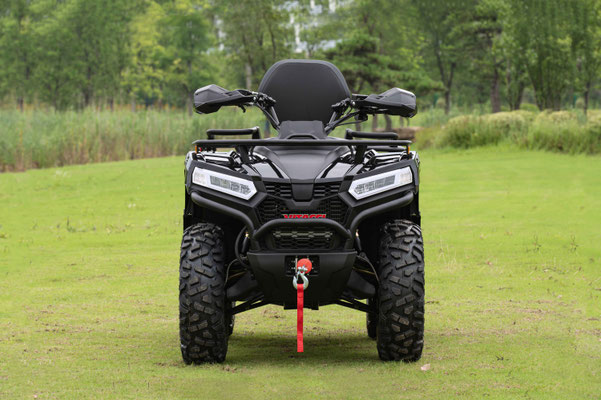

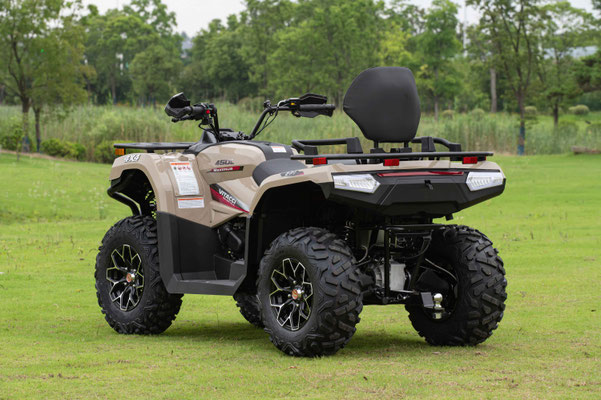

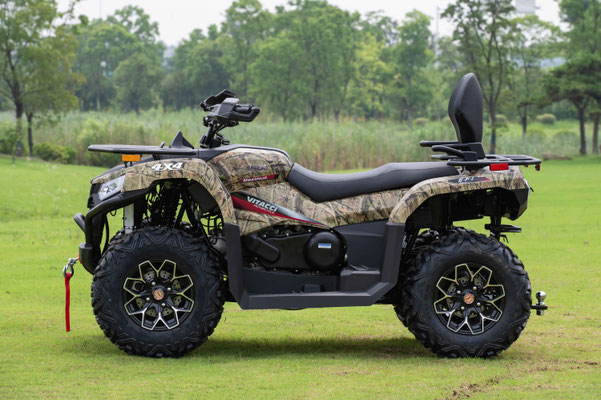

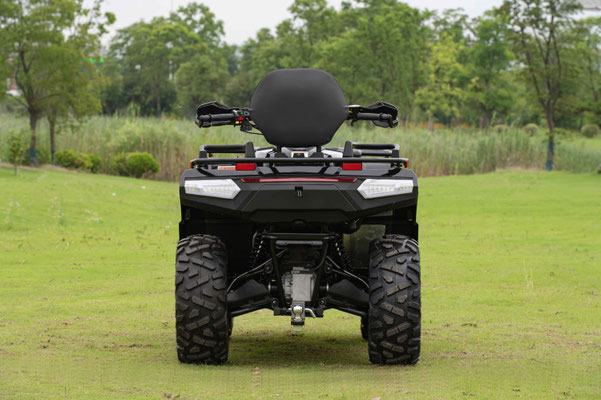

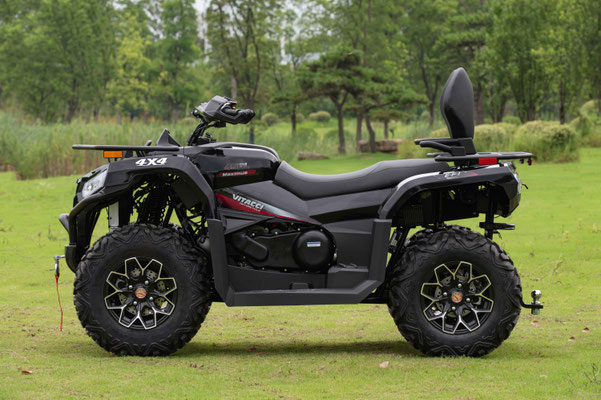

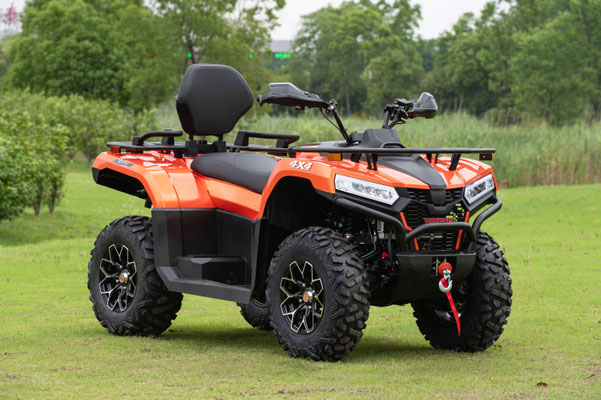

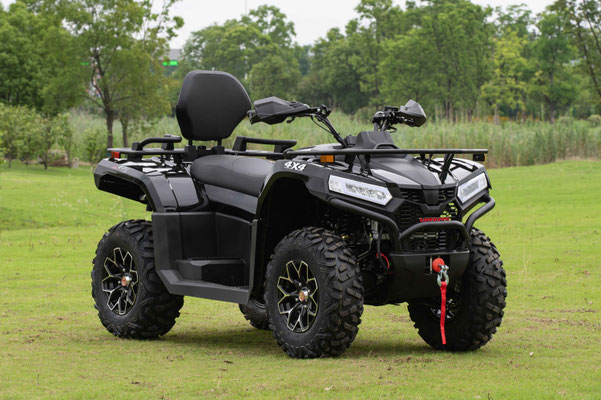

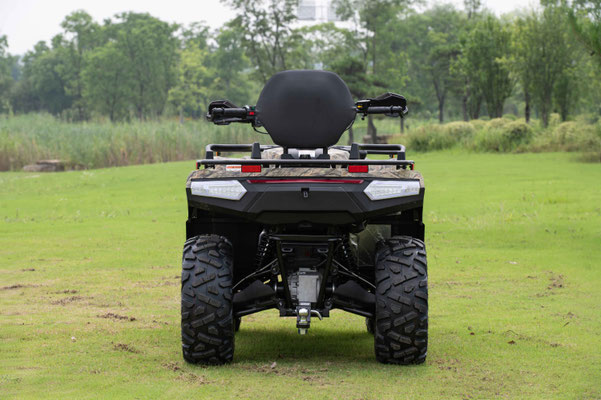

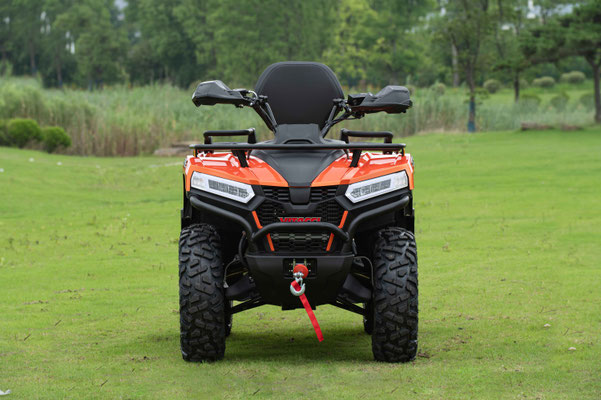

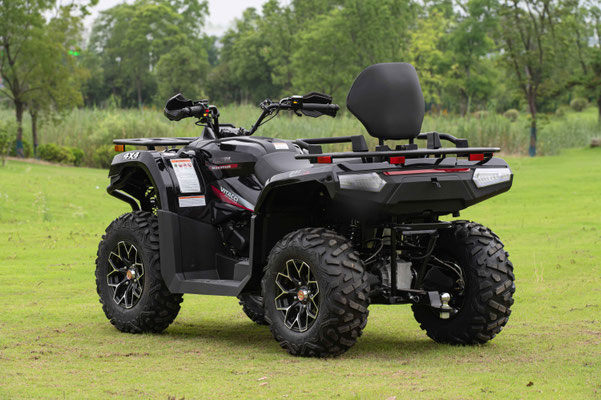

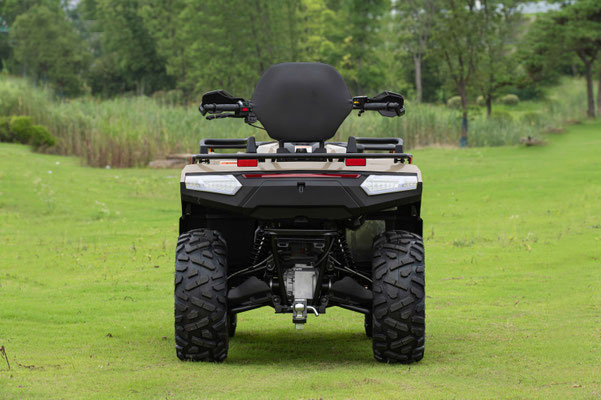

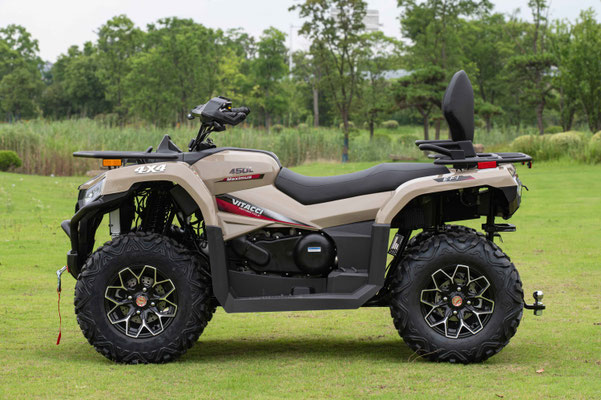

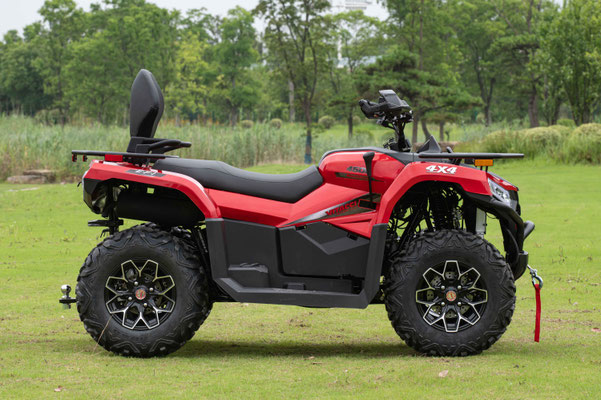

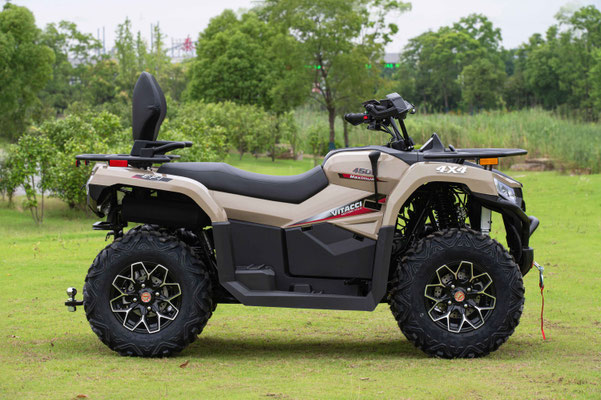

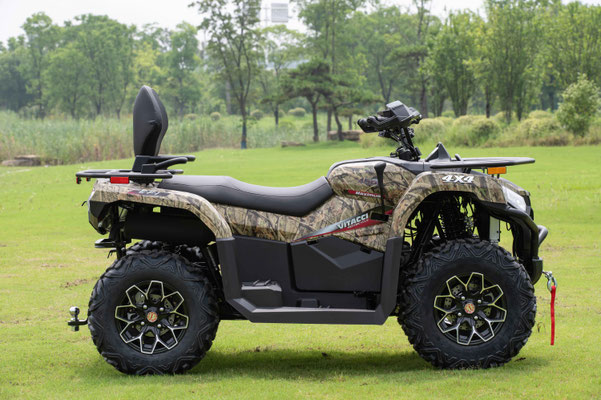

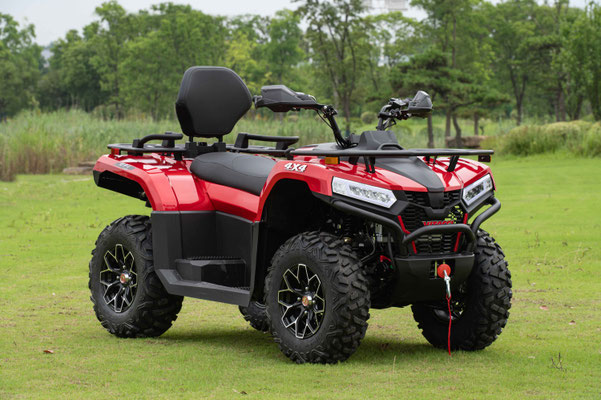

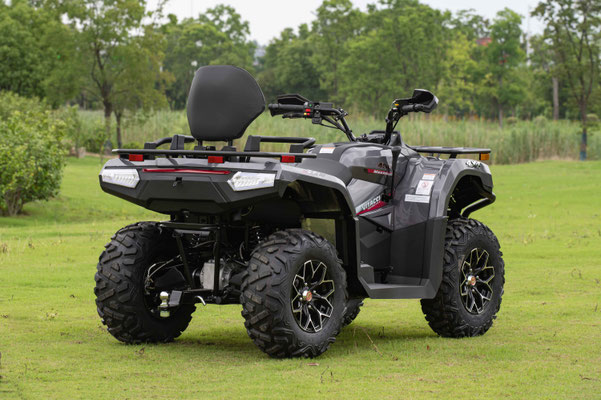

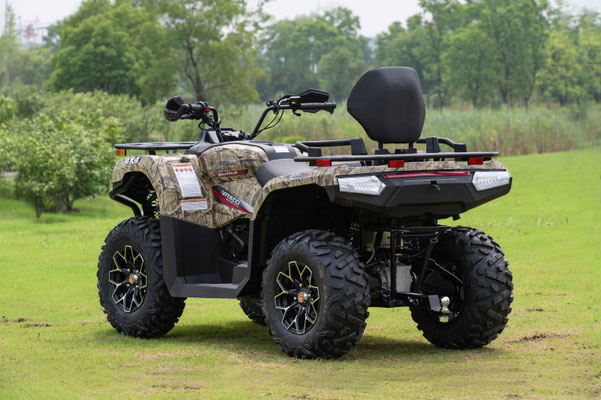

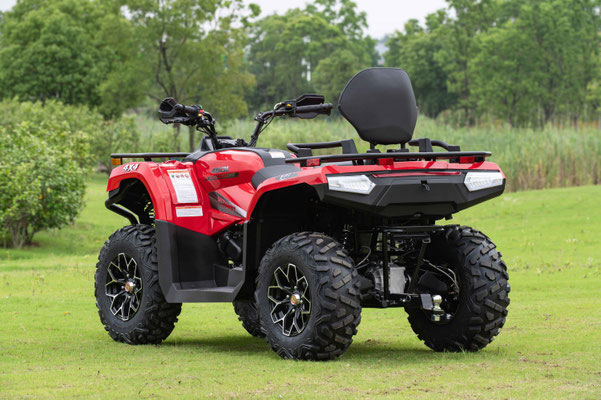

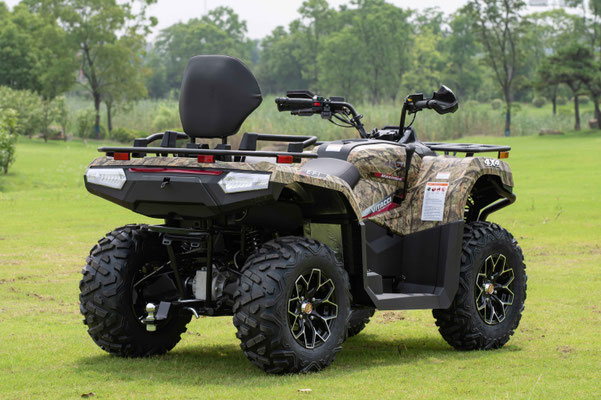

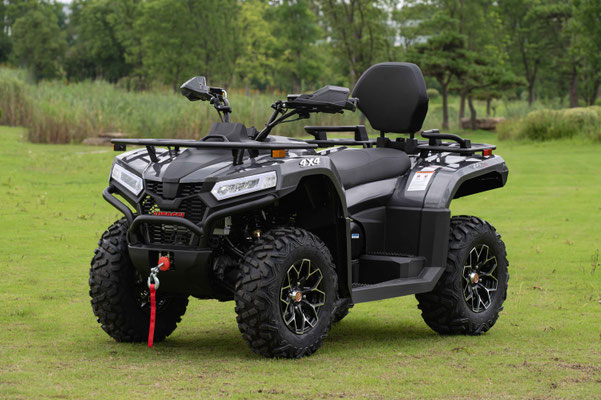

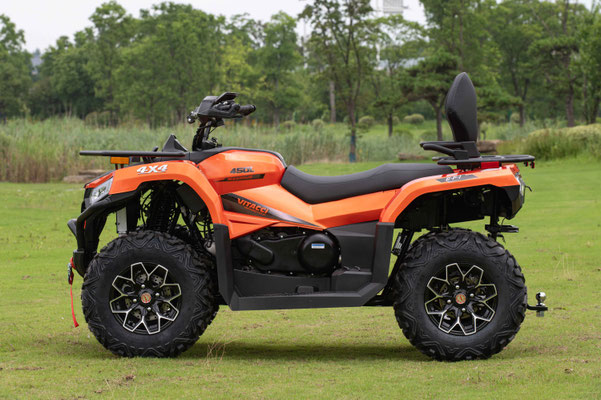

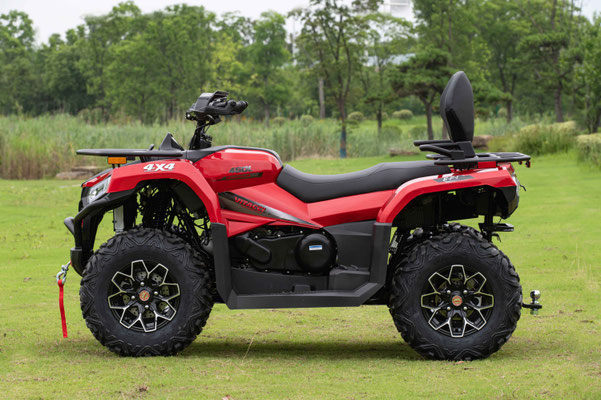

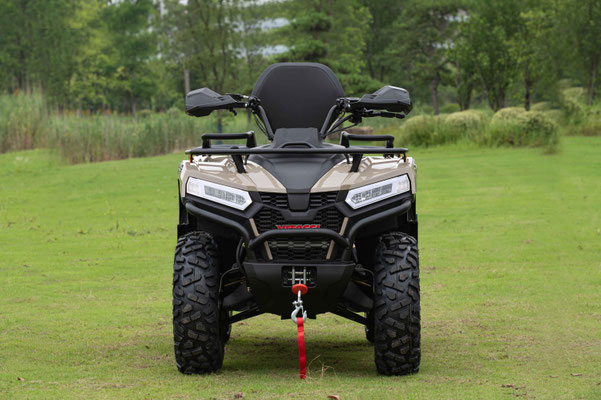

MAXIMUS 450L
SPECIFICATIONS
| DOMENSION | 2315x1144x1340mm |
| WHEEL BASE | 1460 mm |
| GROUND CLEARANCE | 250mm |
| WEIGHT | 353kg |
| LOADING CAPACITY | 240kg |
| FUEL TANK CAPACITY | 17L |
| TOP SPEED | >80km/h |
| TOWING CAPACITY WEIGHT （TRAILER WITHOUT BRAKE SYSTEM) | 250kg |
| TOWING CAPACITY WEIGHT （TRAILER MUST WITH BRAKE SYSTEM) | 585kg |
| DIFFERENTIAL & LOCK |
FRONT AXLE DIFFERENTIAL REAR AXLE WITH DIFFERENTIAL LOCK (OPTION) |
| DRIVING MODE | 4WD |
| BRAKING SYSTEM | FRONT AND REAR DISC BRAKE |
| SUSPENSION MODE | F/R: DOUBLE A-ARM INDEPENDENT SUSPECTION |
| SUSPENSION TYPE | F/R: COIL SPRING+OIL DAMPING TYPE |
| TIRE MODE | F：25x8-12 |
| R：25x10-12 | |
| ENGINE TYPE | SINGLE CYLINDER,WATER COOLING, FOUR STORKE, ENGINE BALANCE SHAFT |
| DISPLACEMENT | 391 cc |
| BORE * ROUTE | 82x74mm |
| MAX POWER/RPM | 20kW/6500rpm |
| MAX TORQUE/RPM | 30N.m/5000rpm |
| COMPRESSION RATIO | 10:01 |
| FUEL SUPPLY MODE | ELECTRONIC FUEL INJECTION |
| IGNITION CONTROL MODE | ECU |
| TRANSMISSION TYPE | CVT / BELT |
