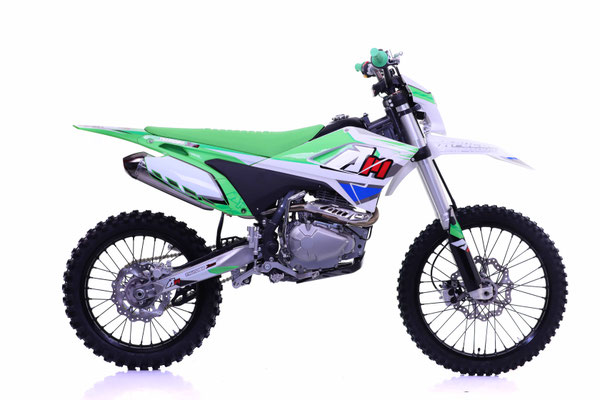

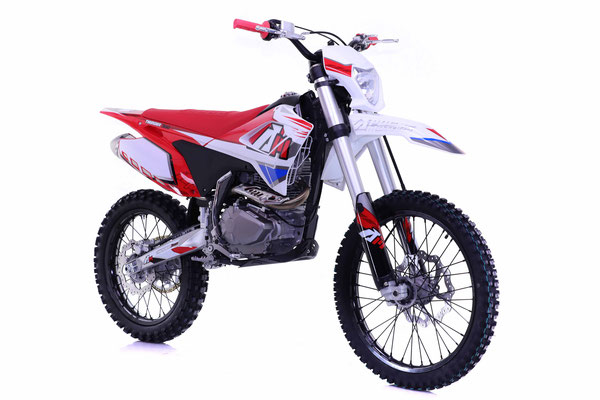

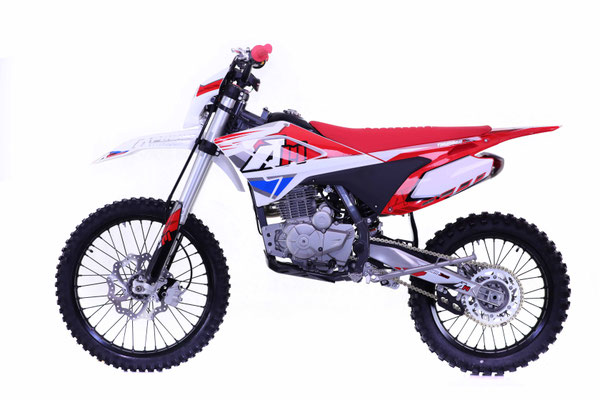

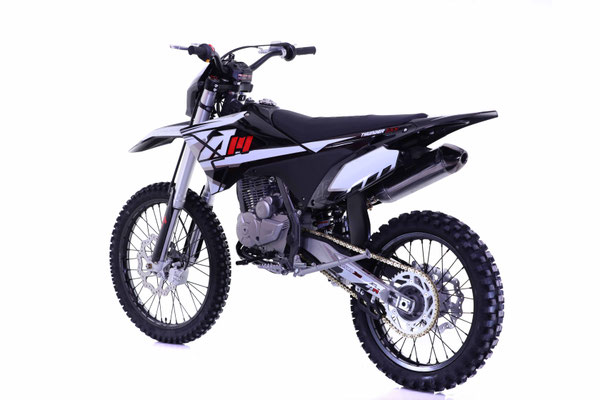

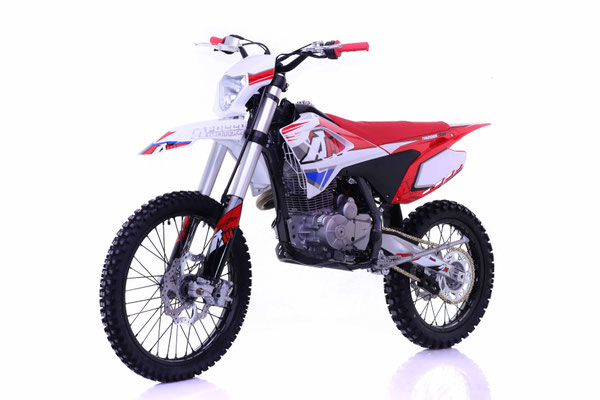

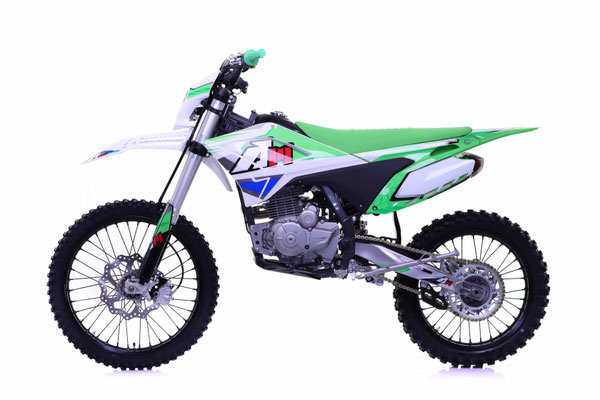

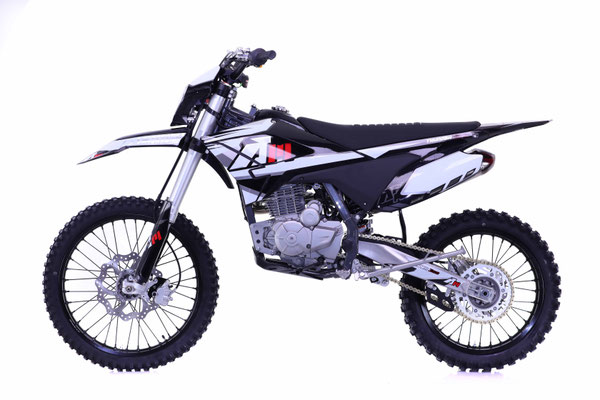

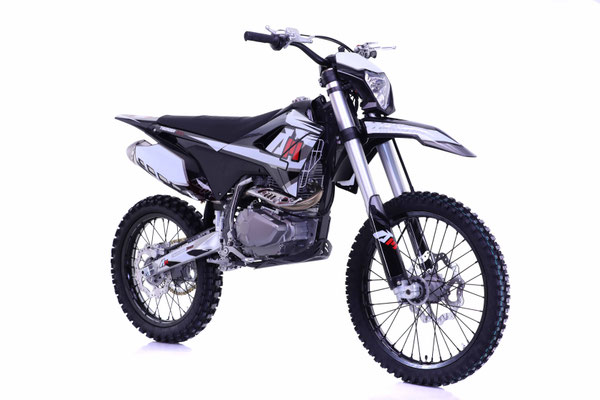

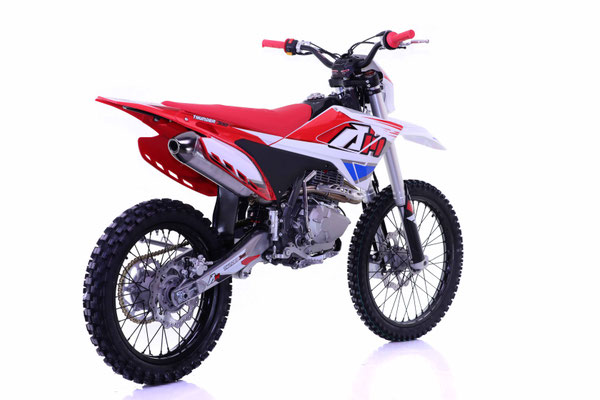

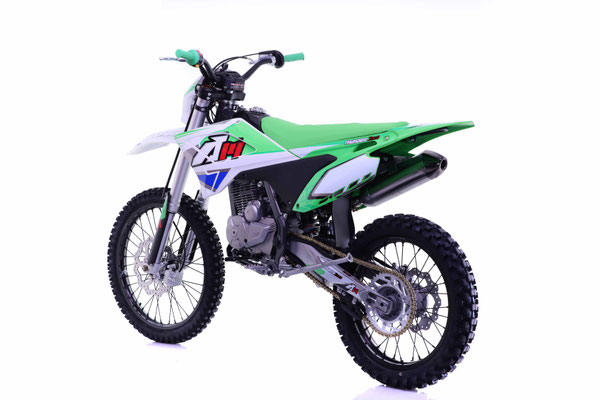

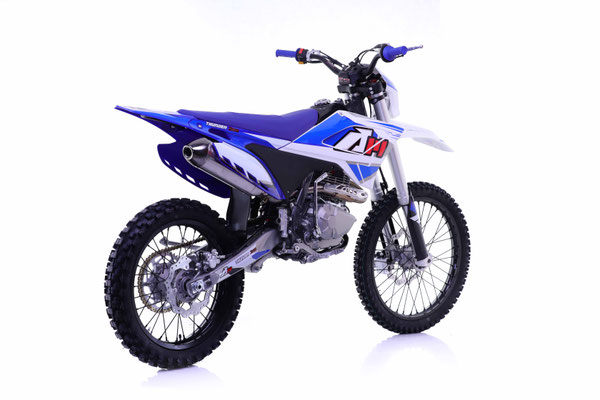

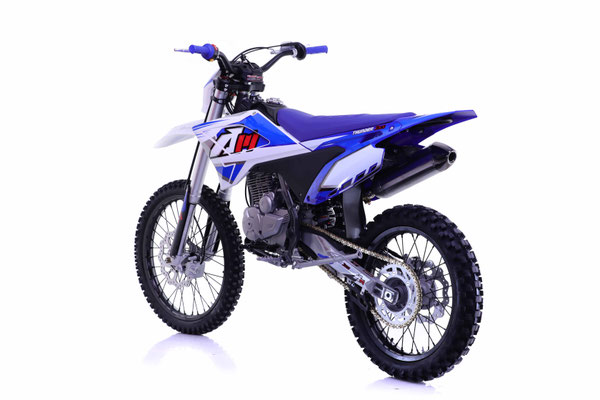

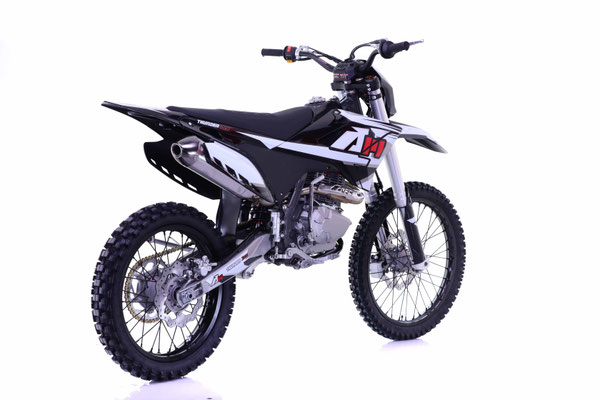

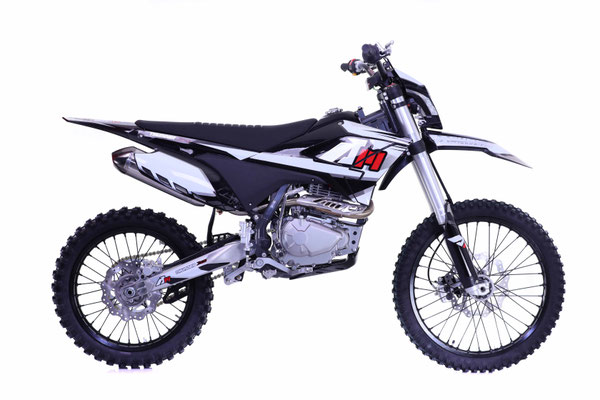

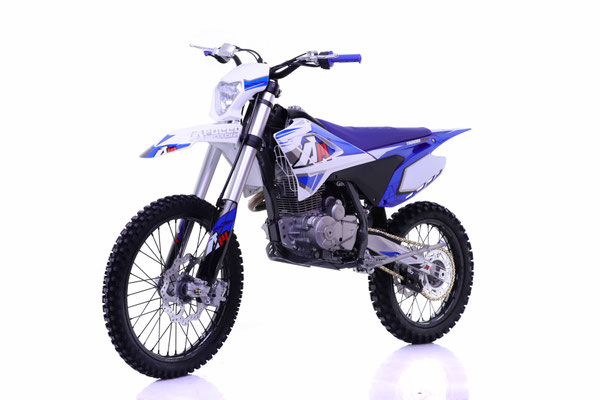

THUNDER 300 DLX
|
Specification
|
|
|
Engine Type:
|
PR300 Displacement 271.3ml 4 stroke,Single cylinder,air cooling, oblique,OHC |
| Carburetor: | PE30 |
| Cooling | Air cooling |
| Drive | 520H-110 |
| Ignition: | Electric start & Kick start |
| Max Power: | 16kW/8500r/min |
| Max speed: | >100km/h |
| Tank Capcity | 6.5L |
| Fr & Rr wheels |
Fr wheel : 7 series Aluminum rim and hub , 80/100-21" Yuanxing off-road tire Rr wheel : 7 series Aluminum rim and hub , 100/90-18" Yuanxing off-road tire |
| Front fork | 880mm double-Adjustable hydraulic front fork , travel distance 265mm |
| Rear shock absorber | 450mm single-Adjustable hydraulic rear shock absorber , travel distance 72mm |
| Handlebar | Aluminum Fat handlebar |
| Clamps | Forged aluminum clamps |
| Frame | Steel |
| Rear swing arm | Steel |
| Brake |
Fr brake hydraulic dis brake by hand, brake disc φ270mm Rr brake hydraulic disc brake by foot , brake disc φ240mm |
| Muffler | Stainless steel |
| Wiring harness | Waterproof wiring harness |
| Headlight | With headlight |
| Dimensions | |
| Seat height | 945mm |
| Max Load | 90kg |
| G.W./N.W. | 129kg/111kg |
| Wheel base | 1367mm |
| Ground clearance | 340mm |
| Product built size | 2047mm*810mm*1220mm |
| Product packing size | 1580mm*430mm*860mm |
