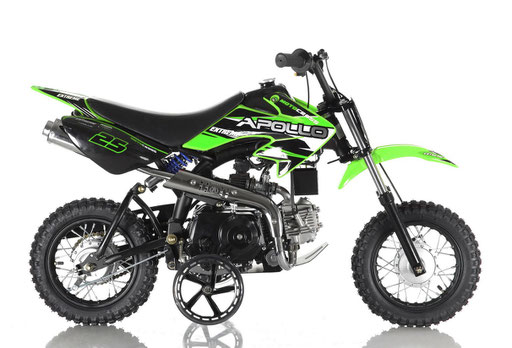

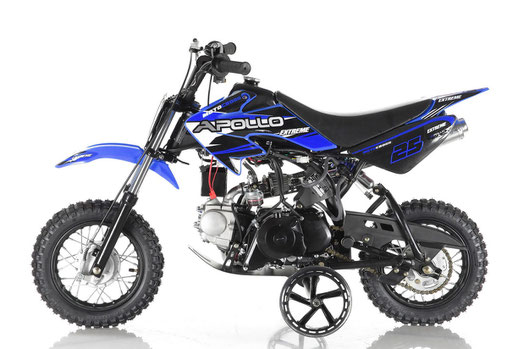

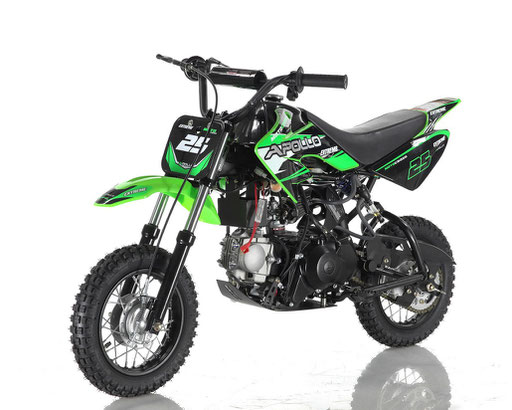

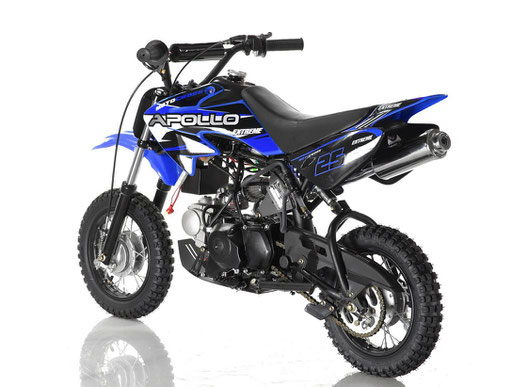

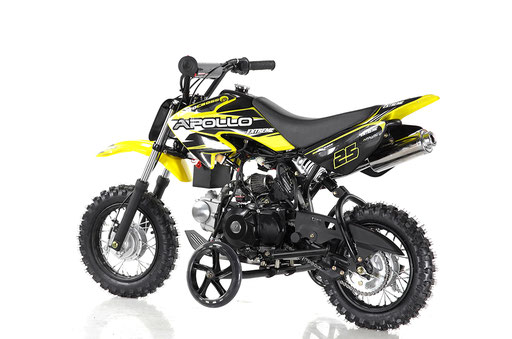

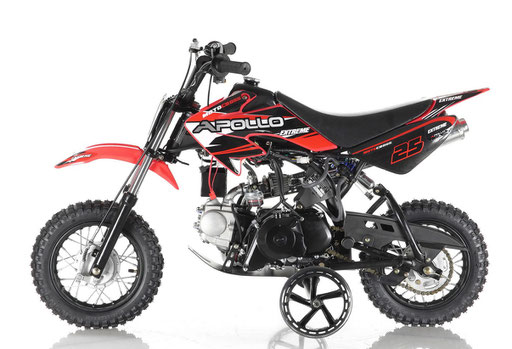

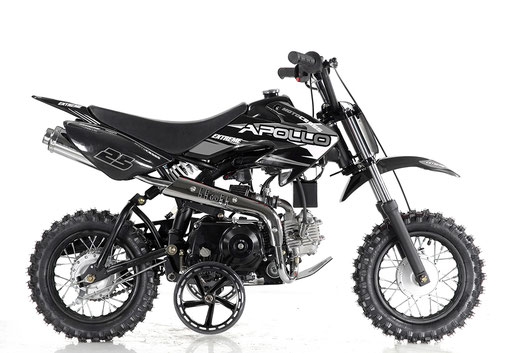

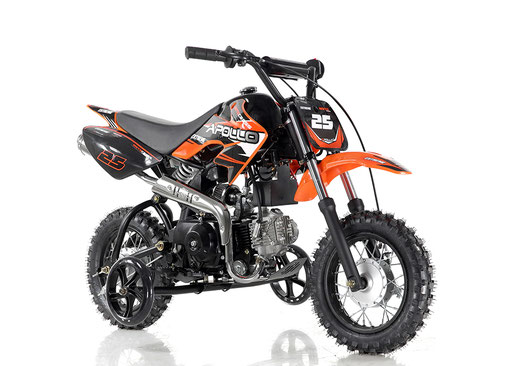

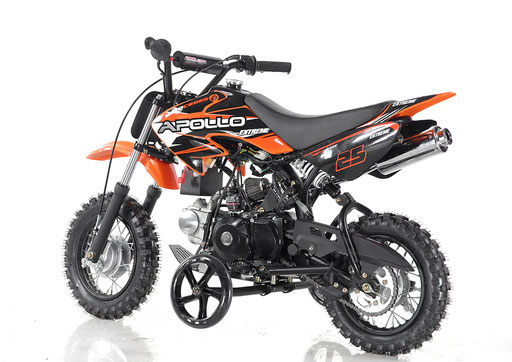

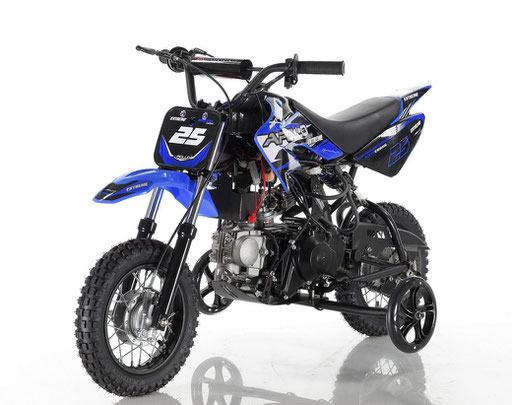

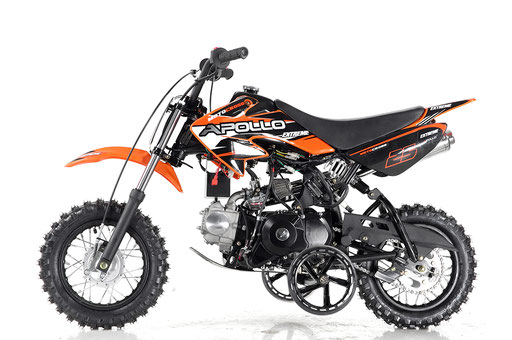

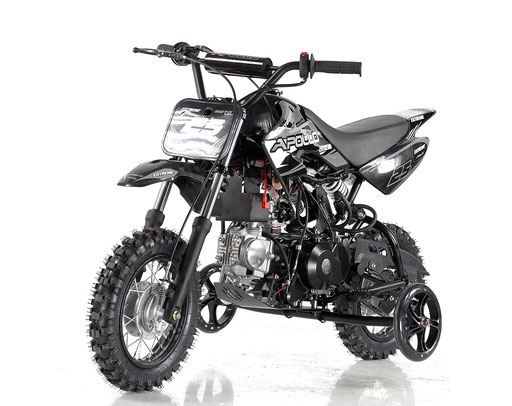

DB-25 70cc Automatic
|
ENGINE INFO |
DB-25 70cc FULLY Automatic |
|
CHASSIS ETC. |
|
|
Engine type: |
1P47FMD 4-STROKE, SINGLE CYLINDER, AIR COOLED |
|
Clutch: |
AUTOMATIC |
|
Engine brand: |
APOLLO |
|
Transmission: |
AUTOMATIC |
|
Displacement: |
70cc |
|
Driveline: |
CHAIN |
|
Cooling: |
AIR COOLED |
|
Driving wheel: |
* |
|
Max horsepower: |
6HP / 4.5 KW |
|
Suspension, front/rear: |
* |
|
Max torque: |
9.0/5500 |
|
Brakes, front/rear: |
DRUM/DRUM |
|
Bore*stroke: |
47MM*41.8 MM |
|
Brake operation: |
FRONT:HAND;REAR:FOOT |
|
|
|
|
Tires, front/rear: |
F-2.50-10 / R-2.50-10 |
|
Fuel capacity/type: |
3 L |
|
Ignition: |
C.D.I |
|
Weight,G.W./N.W.: |
180.4LBS /149.6LBS (82 KG/ 68 KG ) |
|
Starting system: |
ELECTRIC STAR |
|
Max load: |
132LBS / 60KG |
|
Battery: |
YES |
|
Carburetor brand: |
JINKE |
|
Engine oil: |
15W/40-SE（GB 11121） |
|
Wheelbase: |
36.61" / 930 MM |
|
Gear oil: |
* |
|
OA L*W*H: |
57.48"X20.47"X32.68"/ 1460*520*830 MM |
|
Height to seat: |
25" |
|
Colors available: |
BLACK,
RED, YELLOW, GREEN,BLUE, ORANGE |
|
Min ground clearance: |
5.79" / 147 MM |
|
Decals(Y/N): |
Y |
|
Carton size: |
5.31"*14.17"*27.95" / 135*360*710 MM |
|
Tool kit(Y/N): |
Y |
|
Remote start(Y/N): |
N |
|
Remote engine stop(Y/N): |
N |
|
Remote alarm(Y/N): |
N |
